Dalam dunia permesinan dan fabrikasi, memilih ukuran mata bor yang sesuai sebelum melakukan proses tap adalah kunci untuk mendapatkan hasil yang maksimal dan presisi. Proses tap digunakan untuk membuat ulir dalam pada benda kerja, dan untuk memastikan ulir tersebut terbentuk dengan sempurna sesuai standar toleransi, diperlukan ukuran mata bor yang sesuai.
Berikut ini rekomendasi ukuran mata bor ( drill ) untuk tap, proses tapping, threading/pembuatan ulir metris yang digunakan pada proses hand tap atau tap mesin (machine tap) dalam standar Metric (Metrik) :
| Thread Size | Ukuran Drill (mm) | Toleransi ukuran Lubang (mm) | |
| Max. | Min. | ||
| M2 × 0.4 | 1.60 | 1.679 | 1.567 |
| M2 × 0.25 | 1.75 | 1.785 | 1.729 |
| M2.2 × 0.45 | 1.75 | 1.838 | 1.713 |
| M2.2 × 0.25 | 1.95 | 1.985 | 1.929 |
| M2.2 × 0.4 | 1.90 | 1.979 | 1.867 |
| M2.3 × 0.25 | 2.05 | 2.061 | 2.001 |
| M2.5 × 0.45 | 2.10 | 2.138 | 5.013 |
| M2.5 × 0.35 | 2.20 | 2.221 | 2.121 |
| M2.6 × 0.45 | 2.20 | 2.238 | 2.113 |
| M2.6 × 0.35 | 2.20 | 2.246 | 2.186 |
| M3 × 0.5 | 2.50 | 2.599 | 2.459 |
| M3 × 0.35 | 2.70 | 2.721 | 2.621 |
| M3.5 × 0.6 | 2.90 | 3.010 | 2.850 |
| M3.5 × 0.35 | 3.20 | 3.221 | 3.121 |
| M4 × 0.7 | 3.30 | 3.422 | 3.242 |
| M4 × 0.5 | 3.50 | 3.599 | 3.459 |
| M4.5 × 0.75 | 3.80 | 3.878 | 3.688 |
| M4.5 × 0.5 | 4.00 | 4.099 | 3.959 |
| M5 × 0.8 | 4.20 | 4.334 | 4.134 |
| M5 × 0.5 | 4.50 | 4.599 | 4.459 |
| M6 × 1 | 5.00 | 5.153 | 4.917 |
| M6 × 0.75 | 5.30 | 5.378 | 5.188 |
| M6 × 0.5 | 5.50 | 5.550 | 5.400 |
| M7 × 1 | 6.00 | 6.153 | 5.917 |
| M7 × 0.75 | 6.30 | 6.378 | 6.188 |
| M7 × 0.5 | 6.50 | 6.550 | 6.400 |
| M8 × 1.25 | 6.80 | 6.912 | 6.647 |
| M8 × 1 | 7.00 | 7.153 | 6.917 |
| M8 × 0.75 | 7.30 | 7.378 | 7.188 |
| M8 × 0.5 | 7.50 | 7.520 | 7.400 |
| M9 × 1.25 | 7.80 | 7.912 | 7.647 |
| M9 × 1 | 8.00 | 8.153 | 7.917 |
| M9 × 0.75 | 8.30 | 8.378 | 8.188 |
| M10 × 1.5 | 8.50 | 8.676 | 8.376 |
| M10 × 1.25 | 8.80 | 8.912 | 8.647 |
| M10 × 1 | 9.00 | 9.153 | 8.917 |
| M10 × 0.75 | 9.30 | 9.378 | 9.188 |
| M10 × 0.5 | 9.50 | 9.520 | 9.400 |
| M11 × 1.5 | 9.50 | 9.676 | 9.376 |
| M11 × 1 | 10.00 | 10.153 | 9.917 |
| M11 × 0.75 | 10.30 | 10.378 | 10.188 |
| M12 × 1.75 | 10.30 | 10.441 | 10.106 |
| M12 × 1.5 | 10.50 | 10.676 | 10.376 |
| M12 × 1.25 | 10.80 | 10.912 | 10.647 |
| M12 × 1 | 11.00 | 11.153 | 10.917 |
| M12 × 0.5 | 11.50 | 11.520 | 11.400 |
| M14 × 2 | 12.00 | 12.210 | 11.835 |
| M14 × 1.5 | 12.50 | 12.676 | 12.376 |
| M14 × 1 | 13.00 | 13.153 | 12.917 |
| M15 × 1.5 | 13.50 | 13.673 | 13.376 |
| M15 × 1 | 14.00 | 14.153 | 13.917 |
| M16 × 2 | 14.00 | 14.210 | 13.835 |
| M16 × 1.5 | 14.50 | 14.676 | 14.376 |
| M16 × 1 | 15.00 | 15.153 | 14.917 |
| M17 × 1.5 | 15.50 | 15.676 | 15.376 |
| M17 × 1 | 16.00 | 16.153 | 15.917 |
| M18 × 2.5 | 15.50 | 15.744 | 15.294 |
| M18 × 2 | 16.00 | 16.210 | 15.835 |
| M18 × 1.5 | 16.50 | 16.676 | 16.376 |
| M18 × 1 | 17.00 | 17.153 | 16.917 |
| M20 × 2.5 | 17.50 | 17.744 | 17.294 |
| M20 × 2 | 18.00 | 18.210 | 17.835 |
| M20 × 1.5 | 18.50 | 18.676 | 18.376 |
| M20 × 1 | 19.00 | 19.153 | 18.917 |
| M22 × 2.5 | 19.50 | 19.744 | 19.294 |
| M22 × 2 | 20.00 | 20.210 | 19.835 |
| M22 × 1.5 | 20.50 | 20.673 | 20.376 |
| M22 × 1 | 21.00 | 21.153 | 20.917 |
| M24 × 3 | 21.00 | 21.252 | 20.752 |
| M24 × 2 | 22.00 | 22.210 | 21.835 |
| M24 × 1.5 | 22.50 | 22.676 | 22.376 |
| M24 × 1 | 23.00 | 23.153 | 22.917 |
| M25 × 2 | 23.00 | 23.210 | 22.835 |
| M25 × 1.5 | 23.50 | 23.676 | 23.376 |
| M25 × 1 | 24.00 | 24.153 | 23.917 |
| M26 × 1.5 | 24.50 | 24.676 | 24.376 |
| M27 × 3 | 24.00 | 24.252 | 23.752 |
| M27 × 2 | 25.00 | 25.210 | 24.835 |
| M27 × 1.5 | 25.50 | 25.676 | 25.376 |
| M27 × 1 | 26.00 | 26.153 | 25.917 |
| M28 × 2 | 26.00 | 26.210 | 25.835 |
| M28 × 1.5 | 26.50 | 26.676 | 26.376 |
| M28 × 1 | 27.00 | 27.153 | 26.917 |
| M30 × 3.5 | 26.50 | 26.771 | 26.211 |
| M30 × 3 | 27.00 | 27.252 | 26.752 |
| M30 × 2 | 28.00 | 28.210 | 27.835 |
| M30 × 1.5 | 28.50 | 28.676 | 28.376 |
| M30 × 1 | 29.00 | 29.153 | 28.917 |
| M32 × 2 | 30.00 | 30.210 | 29.835 |
| M32 × 1.5 | 30.50 | 30.676 | 30.376 |
| M33 × 3.5 | 29.50 | 29.771 | 29.211 |
| M33 × 3 | 30.00 | 30.252 | 29.752 |
| M33 × 2 | 31.00 | 31.210 | 30.835 |
| M33 × 1.5 | 31.50 | 31.676 | 31.376 |
| M35 × 1.5 | 33.50 | 33.676 | 33.376 |
| M36 × 4 | 32.00 | 32.270 | 31.670 |
| M36 × 3 | 33.00 | 33.252 | 32.752 |
| M36 × 2 | 34.00 | 34.210 | 33.835 |
| M36 × 1.5 | 34.50 | 34.676 | 34.376 |
| M38 × 1.5 | 36.50 | 36.676 | 36.376 |
| M39 × 4 | 35.00 | 35.270 | 34.670 |
| M39 × 3 | 36.00 | 36.252 | 35.752 |
| M39 × 2 | 37.00 | 37.210 | 36.835 |
| M39 × 1.5 | 37.50 | 37.676 | 37.376 |
| M40 × 3 | 37.00 | 37.252 | 36.752 |
| M40 × 2 | 38.00 | 38.210 | 37.835 |
| M40 × 1.5 | 38.50 | 38.676 | 38.376 |
| M42 × 4.5 | 37.50 | 37.799 | 37.129 |
| M42 × 4 | 38.00 | 38.270 | 37.670 |
| M42 × 3 | 39.00 | 39.252 | 38.752 |
| M42 × 2 | 40.00 | 40.210 | 39.835 |
| M42 × 1.5 | 40.50 | 40.676 | 40.376 |
| M45 × 4.5 | 40.50 | 40.799 | 40.129 |
| M45 × 4 | 41.00 | 41.270 | 40.670 |
| M45 × 3 | 42.00 | 42.252 | 41.752 |
| M45 × 2 | 43.00 | 43.210 | 72.835 |
| M45 × 1.5 | 43.50 | 43.676 | 73.376 |
| M48 × 5 | 43.00 | 43.297 | 42.587 |
| M48 × 4 | 44.00 | 44.270 | 43.670 |
| M48 × 3 | 45.00 | 45.252 | 44.752 |
| M48 × 2 | 46.00 | 46.210 | 45.835 |
| M48 × 1.5 | 46.50 | 46.676 | 46.376 |
| M50 × 3 | 47.00 | 47.252 | 46.752 |
| M50 × 2 | 48.00 | 48.210 | 47.835 |
| M50 × 1.5 | 48.50 | 48.676 | 48.376 |
-
D1GP103 – HSS Drill GOLD-P Normal Point YG1 – Mata Bor Besi Baja Stainless
Use this feature to chat with our agent.
-
D1GP123- HSS Drill Gold-P Split Point YG-1 Mata Bor Stainless Baja
Use this feature to chat with our agent.
-
D2GP191 – HSS Cobalt Drill Gold-P YG1 – Mata Bor Cobalt Stainless Baja
Use this feature to chat with our agent.
-
Mata Bor Set Gold-P Drill YG1 – untuk Besi Stainless Baja
Use this feature to chat with our agent.
-
T1809 I-SP HSS Combo Tap Spiral Flute – Black Oxide YG-1
Use this feature to chat with our agent.
-
T1829 I-GP HSS Combo Tap Gun Point (PO) – Black Oxide YG-1
Use this feature to chat with our agent.
-
T2809 I-SP HSS Combo Tap Spiral Flute Bright YG1
Use this feature to chat with our agent.
-
T2829 Series – I-GP Spiral point TAPS for Multi Purpose YG1
Use this feature to chat with our agent.
-

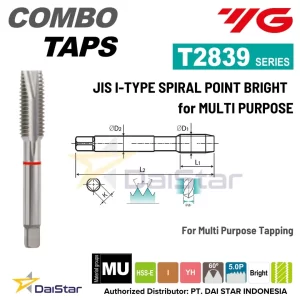

T2839 – I-SP Spiral Flute TAP UNC – UNF for Multi Purpose YG1
