Ukuran Mata bor untuk Tap Ulir Inchi

Standar Ulir Inchi : UNC, UNF, UNEF, Whitworth, BSW, PT Pipe Tap, NPT

Dalam proses Pembuatan Ulir ukuran Inch 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 3/4, 7/8, 1″, 1 1/8, 1 1/4, 1 3/8, 1 1/2, 1 5/8, 1 3/4, 2′ kadang kita kesulitan mencari ukuran mata bor dalam ukuran Inchi juga karena satuan ukuran mata Bor yang di jual di indonesia adalah umumnya dengan satuan milimeter (mm). Perlu dilakukan konversi satuan ukuran Inchi ke milimeter.

Berikut ini adalah tabel lengkap ukuran Mata bor untuk pembuatan Ulir Inchi

Tabel Ulir Inchi & Ukuran Mata Bor :

Ukuran Mata Bor untuk Ulir Unified Thread UNC, UNF, UNEF :

	Drill Size (mm)	D1 (mm)		`	Drill Size (mm)	D1 (mm)
	Drill Size (mm)	Max.	Min.		Drill Size (mm)	Max.	Min.
#2 – 56 UNC	1.80	1.871	1.695	1/4 – 28 UNF	5.50	5.588	5.360
#2 – 64 UNF	1.85	1.912	1.756	1/4 – 32 UNEF	5.60	5.690	5.486
#3 – 48 UNC	2.10	2.146	1.941	5/16 – 18 UNC	6.60	6.731	6.401
#3 – 56 UNF	2.10	2.197	2.025	5/16 – 24 UNF	6.90	7.035	6.782
#4 – 40 UNC	2.30	2.385	2.157	5/16 – 32 UNEF	7.10	7.264	7.087
#4 – 48 UNF	2.40	2.458	2.271	5/16 – 16 UNC	8.00	8.153	7.798
#5 – 40 UNC	2.60	2.697	2.487	3/8 – 24 UNF	8.50	8.636	8.382
#5 – 44 UNF	2.70	2.740	2.551	3/8 – 32 UNEF	8.70	8.865	8.661
#6 – 32 UNC	2.80	2.895	2.642	7/16 – 14 UNC	9.40	9.550	9.144
#6 – 40 UNF	2.90	3.022	2.820	7/16 – 20 UNF	9.90	10.033	9.729
#8 – 32 UNC	3.40	3.530	3.302	7/16 – 28 UNEF	10.20	10.338	10.135
#8 – 36 UNF	3.50	3.606	3.404	1/2 – 13 UNC	10.80	11.023	10.592
#10 – 24 UNC	3.90	3.962	3.683	1/2 – 20 UNF	11.50	11.607	11.329
#10 – 32 UNF	4.10	4.165	3.963	1/2 – 28 UNEF	11.80	11.938	11.709
#12 – 24 UNC	4.50	4.597	4.344	9/16 – 12 UNC	12.20	12.446	11.989
#12 – 28 UNF	4.60	4.724	4.496	9/16 – 18 UNF	12.90	13.081	12.751
#12 – 32 UNF	4.70	4.826	4.623	9/16 – 24 UNEF	13.20	13.386	13.132
1/4 – 20 UNC	5.10	5.257	4.979	5/8 – 11 UNC	13.60	13.868	13.386

	Drill Size (mm)	D1 (mm)			Drill Size (mm)	D1 (mm)
	Drill Size (mm)	Max.	Min.		Drill Size (mm)	Max.	Min.
5/8 – 18 UNF	14.50	14.681	14.351	1 1/4 – 8 UN	28.50	28.956	28.321
5/8 – 24 UNEF	14.80	14.986	14.732	1 3/8 – 6 UNC	30.80	31.115	30.353
3/4 – 10 UNC	16.50	16.840	16.307	1 3/8 – 12 UNF	32.80	33.096	32.639
3/4 – 16 UNF	17.50	17.678	17.323	1 3/8 – 18 UNEF	33.50	33.731	33.401
3/4 – 20 UNEF	17.80	17.958	17.678	1 3/8 – 8 UN	31.80	32.131	31.496
7/8 – 9 UNC	19.50	19.761	19.177	1 1/2 – 6 UNC	34.00	34.290	33.528
7/8 – 14 UNF	20.50	20.675	20.270	1 1/2 – 12 UNF	36.00	36.271	35.814
7/8 – 20 UNEF	21.00	21.133	20.853	1 1/2 – 18 UNEF	36.50	36.881	36.576
1 – 8 UNC	22.20	22.606	21.971	1 1/2 – 8 UN	35.00	35.306	34.671
1 – 12 UNF	23.20	23.571	23.114	1 5/8 – 18 UNEF	39.80	40.081	39.751
1 – 20 UNEF	24.00	24.308	24.028	1 5/8 – 8 UN	38.20	38.481	37.846
1 1/8 – 7 UNC	25.00	25.349	24.638	1 5/8 – 12 UN	39.20	39.446	38.989
1 1/8 – 12 UNF	26.50	26.746	26.289	1 3/4 – 5 UNC	39.50	39.827	38.964
1 1/8 – 18 UNEF	27.20	27.381	27.051	1 3/4 – 8 UN	41.20	41.656	41.021
1 1/8 – 8 UN	25.50	25.781	25.146	1 3/4 – 12 UN	42.20	42.621	42.164
1 1/4 – 7 UNC	28.20	28.524	27.813	2 – 4 UNC	45.20	45.593	44.679
1 1/4 – 12 UNF	29.50	29.921	29.464	2 – 8 UN	47.80	48.006	47.371
1 1/4 – 18 UNEF	30.20	30.556	30.226	2 – 12 UN	48.50	48.971	48.514

D1 : Minor diameter of internal thread, For UNC and UNF threads, according to JIS Class 2B, For UNEF and UN threads, according to ANSI B1.1 Class 2B

Ukuran Mata Bor untuk Ulir Whithworth

	Drill Size (mm)			Drill Size (mm)
	A	B		A	B
W1/8 – 40	2.65	2.60	W7/8 – 9	19.50	19.30
W5/32 – 32	3.25	3.20	W1 – 8	22.40	22.00
W3/16 – 24	3.75	3.70	W1 1/8 – 7	25.00	24.80
W1/4 – 20	5.10	5.00	W1 1/4 – 7	28.30	28.00
W5/16 – 18	6.60	6.50	W1 3/8 – 6	30.50	30.30
W3/8 – 16	8.00	7.90	W1 1/2 – 6	33.80	33.50
W7/16 – 14	9.40	9.30	W1 5/8 – 5	36.00	35.70
W1/2 – 12	10.70	10.50	W1 3/4 – 5	39.20	39.00
W9/16 – 12	12.30	12.00	W1 7/8 – 4 1/2	41.80	41.50
W5/8 – 11	13.70	13.50	W2 – 4 1/2	45.00	44.70
W3/4 – 10	16.70	16.50

Generally the tap drill sizes in column A are used for producing holes ; When holes tend to be cut oversized the tap drill sizes in column B should be Selected

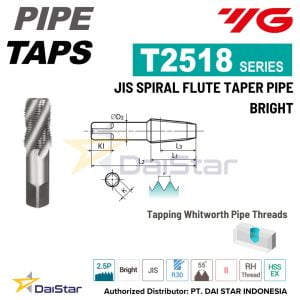

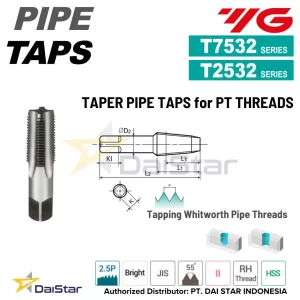

Ukuran Mata Bor Untuk Ulir PT Pipe Taper Thread

	Drill Size (mm)		Internal Thread Minor Dia. on [Min] Length of Useful Thread (mm)	Internal Thread Minor Dia. on [Min] Gauge Length (mm)
	With Reaming Before Tapping	Without Reaming Before Tapoping
PT 1/16 – 28	6.10	6.10	6.244	6.384
PT 1/8 – 28	8.10	8.10	8.249	8.388
PT 1/4 – 19	10.70	10.70	10.962	11.174
PT 3/8 – 19	14.20	14.20	14.448	14.658
PT 1/2 – 14	17.60	17.60	17.979	18.263
PT 3/4 – 14	23.00	23.00	23.378	23.663
PT 1 – 11	29.00	29.00	29.459	29.822
PT 1 1/4 – 11	37.50	37.50	37.976	38.339
PT 1 1/2 – 11	43.40	43.40	43.869	44.232
PT 2 – 11	54.90	54.90	55.412	55.844

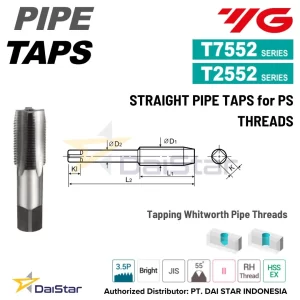

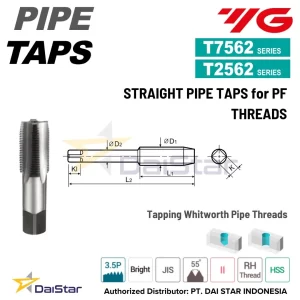

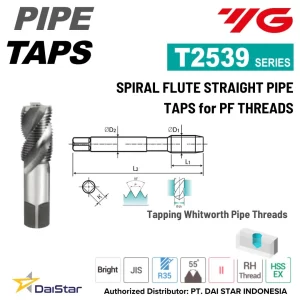

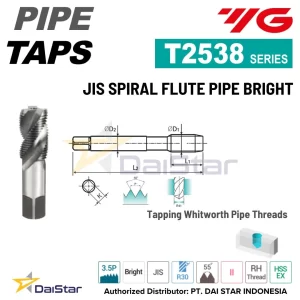

Tabel Ukuran Mata bor untuk Ulir PS & PF Pipe Straight Thread

PS Pipe Straight Thread				PF Pipe Straight Thread
	Drill Size	D1 (mm)			Drill Size	D1 (mm)
	(mm)	Max.	Min.		(mm)	Max.	Min.
PS 1/6 – 28	6.50	6.632	6.490	PF 1/16 – 28	6.70	6.843	6.561
PS 1/8 – 28	8.50	8.637	8.495	PF 1/8 – 28	8.70	8.848	8.566
PS 1/4 – 19	11.40	11.549	11.341	PF 1/4 – 19	11.70	11.890	11.445
PS 3/8 – 19	15.00	15.054	14.846	PF 3/8 – 19	15.20	15.395	14.950
PS 1/2 – 14	18.50	18.773	18.489	PF 1/2 – 14	19.00	19.172	18.631
PS 3/4 – 14	24.00	24.259	23.975	PF 3/4 – 14	24.50	24.658	24.117
PS 1 – 11	30.20	30.471	30.111	PF 1 – 11	30.50	30.931	30.291
PS 1 1/4 – 11	38.80	39.132	38.772	PF 1 1/4 – 11	39.20	39.592	38.952
PS 1 1/2 – 11	44.80	45.025	44.665	PF 1 1/2 – 11	45.00	45.485	44.845
PS 2 – 11	56.50	56.836	56.476	PF 2 – 11	57.00	57.296	56.656

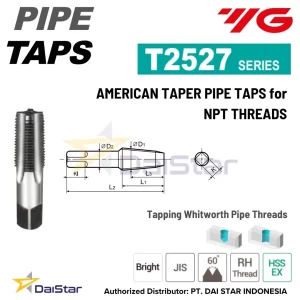

Ukuran Mata Bor untuk Tap Ulir NPT & NPTF (American Standar Taper Pipe Thread)

NPT Taper Pipe Thread
	Drill Size (mm)
	With Reaming Before Tapping		Without Reaming Before Tapoping
	mm	inch	mm	inch
NPT 1/16 – 27	5.94	0.234	6.15	0.242
NPT 1/8 – 27	8.33	0.328	8.43	0.332
NPT 1/4 – 18	10.72	0.422	11.13	0.438
NPT 3/8 – 18	14.27	0.562	14.27	0.562
NPT 1/2 – 14	17.48	0.688	17.86	0.703
NPT 3/4 – 14	22.63	0.891	23.01	0.906
NPT 1 – 11❇1/2	28.58	1.125	28.98	1.141
NPT 1 1/4 – 11 1/2	37.31	1.469	37.69	1.484
NPT 1 1/2 – 11 1/2	43.26	1.703	43.66	1.719
NPT 2 – 11 1/2	55.17	2.172	55.58	2.188
NPT 2/1/2 – 8	65.48	2.578	66.27	2.609

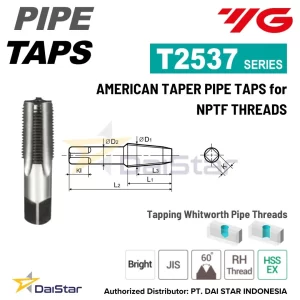

NPTF Taper Pipe Thread
	Drill Size (mm)
	With Reaming Before Tapping		Without Reaming Before Tapping
	mm	inch	mm	inch
NPTF 1/16 – 27	5.94	0.234	6.15	0.242
NPTF 1/8 – 27	8.33	0.328	8.43	0.332
NPTF 1/4 – 18	10.72	0.422	11.13	0.438
NPTF 3/8 – 18	14.27	0.562	14.27	0.562
NPTF 1/2 – 14	17.48	0.688	17.86	0.703
NPTF 3/4 – 14	22.63	0.891	23.01	0.906
NPTF 1 – 11 1/2	28.58	1.125	28.98	1.141
NPTF 1 1/4 – 11 1/2	37.31	1.469	37.69	1.484
NPTF 1 1/2 – 11 1/2	43.26	1.703	43.66	1.719
NPTF 2 – 11 1/2	55.17	2.172	55.58	2.188
NPTF 2/1/2 – 8	65.48	2.578	66.27	2.609

Kami PT. DAISTAR TOOLING INDONESIA adalah Distributor YG-1 Cutting Tools di indonesia yang berlokasi di Cikarang Bekasi. Menjual berbagai jenis Cutting Tools : Mata Bor , Tap dengan harga kompetitif. Telah dipercaya sebagai supplier industri manufaktur di indonesia

Butuh Support terkait informasi seputar Tap & Mata bor diatas ? silahkan hubungi Tim Sales Support kami.
