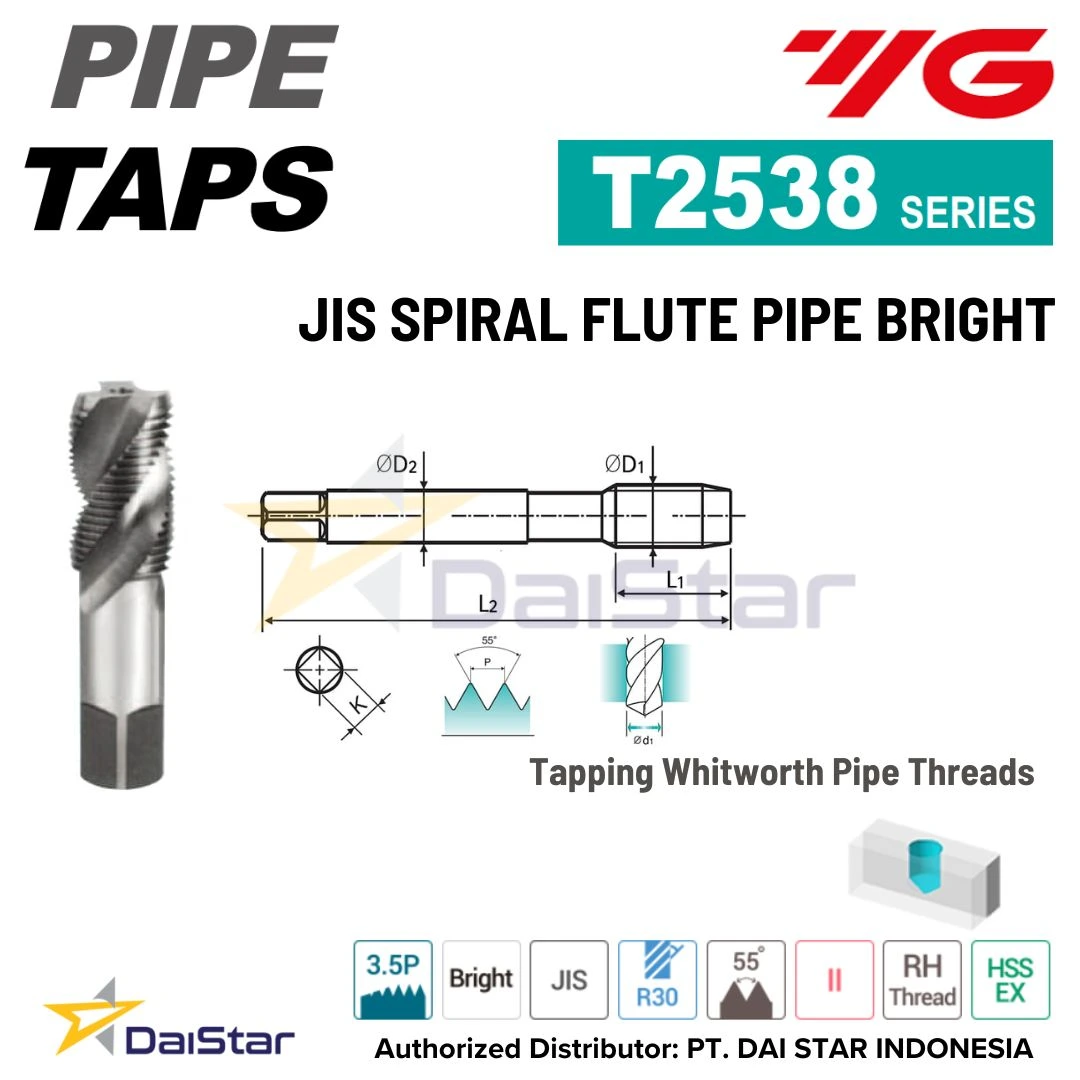

T2538 Series -Spiral Flute Straight Pipe Taps for PS Threads YG1

Item & Spec: Pipe Taps
Type: Pipe Taps
Thread form: UNC/F
Hole Type: Blind Hole
Material : HSS-E
Flute Type : Spiral flute
Helix angle: R35
Surface Treatment: Bright
Suitable for Material: Steel, stainless Steel, Cast Iron, Aluminium

Brand/Origin YG 1
Series Pipe Taps
Application
Distributor PT. DAI STAR INDONESIA

▶ For using multi-purpose and correct thread profiles & long tool life due to special tap geometry

Spesifikasi T2538 Series -Spiral Flute Straight Pipe Taps for PS Threads YG1

SIZE		TPI	EDP No.	Limit	Basic Maj. Dia.	Overall Length	Thread Length	Shank Diameter	Square Size	Square Length	No. of Flute
ØD1		TPI	EDP No.	Limit	Basic Maj. Dia.	L2	L1	ØD2	K	Kl	No. of Flute
PS 1/8	–	28	T2538202	JISⅡ	9,728	55	19	8	6	9	3
PS 1/4	–	19	T2538402	JISⅡ	13,157	62	28	11	9	12	3
PS 3/8	–	19	T2538482	JISⅡ	16,662	65	28	14	11	14	3
PS 1/2	–	14	T2538562	JISⅡ	20,955	80	35	18	14	17	4
PS 3/4	–	14	T2538702	JISⅡ	26,441	85	35	23	17	20	4
PS 1˝	–	11	T2538782	JISⅡ	33,249	95	45	26	21	24	4
