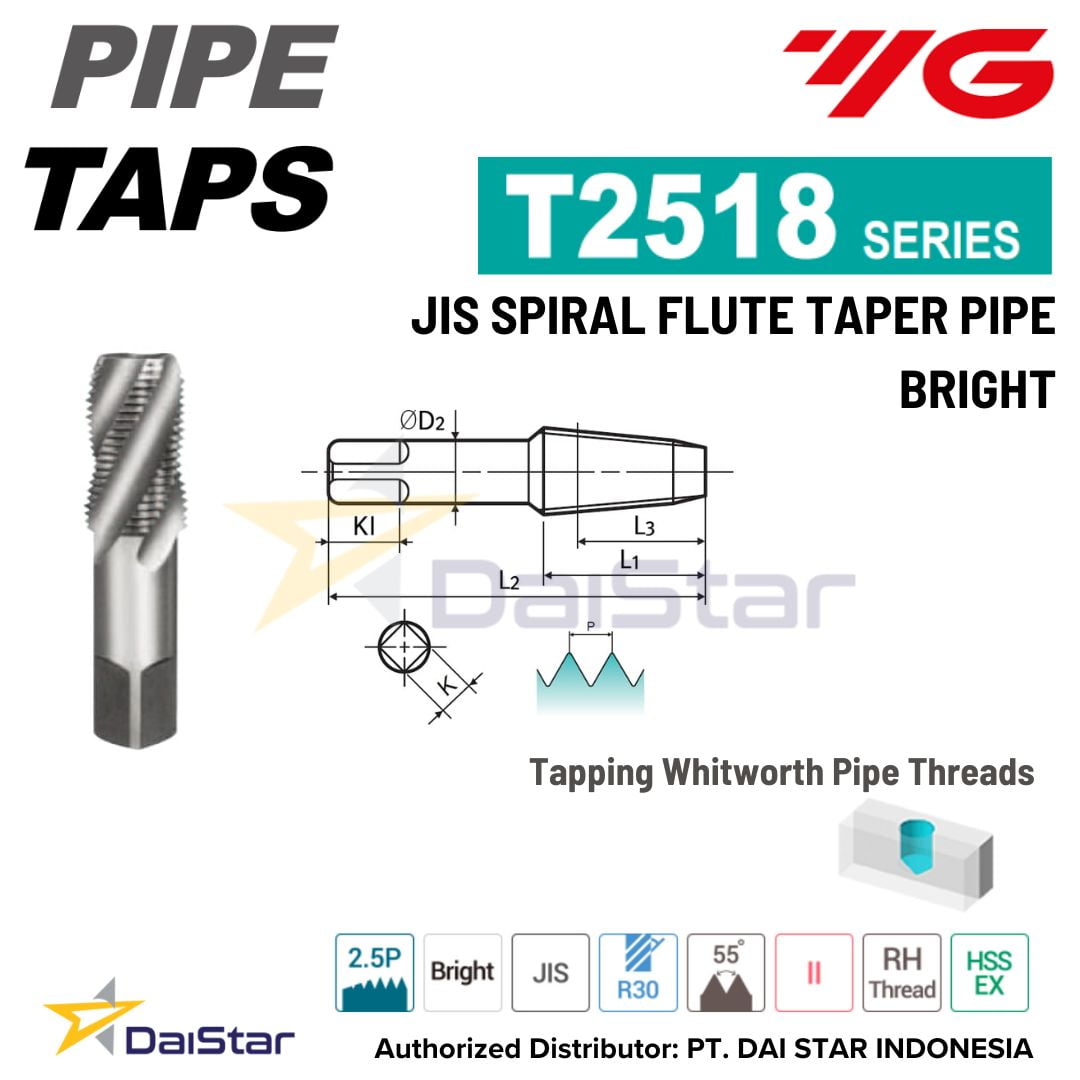

T2518 Series - Spiral Flute Taper Pipe Tap for PT Threads YG1

T2518 Series – Spiral Flute Taper Pipe Tap for PT Threads YG1

Item & Spec: Pipe Taps
Type: Pipe Taps
Thread form: UNC/F
Hole Type: Blind Hole
Material : HSS-E
Flute Type : Spiral flute
Helix angle: R30
Surface Treatment: Bright
Suitable for Material: Steel, stainless Steel, Cast Iron, Aluminium

Brand/Origin YG 1
Series Pipe Taps
Application
Distributor PT. DAI STAR INDONESIA

▶ For using multi-purpose and correct thread profiles & long tool life due to special tap geometry

Spesifikasi T2518 Series – Spiral Flute Taper Pipe Tap for PT Threads YG1

SIZE		TPI	EDP No.	Limit	Basic Maj. Dia.	Overall Length	Thread Length	Projection Length	Shank Diameter	Square Size	Square Length	No. of Flute
ØD1		TPI	EDP No.	Limit	Basic Maj. Dia.	L2	L1	L3	ØD2	K	Kl	No. of Flute
PT 1/8	–	28	T2518202	JISⅡ	9,728	55	19	13	8	6	9	3
PT 1/4	–	19	T2518402	JISⅡ	13,157	62	28	21	11	9	12	3
PT 3/8	–	19	T2518482	JISⅡ	16,662	65	28	21	14	11	14	3
PT 1/2	–	14	T2518562	JISⅡ	20,955	80	35	25	18	14	17	4
PT 3/4	–	14	T2518702	JISⅡ	26,441	85	35	25	23	17	20	4
PT 1˝	–	11	T2518782	JISⅡ	33,249	95	45	32	26	21	24	4
