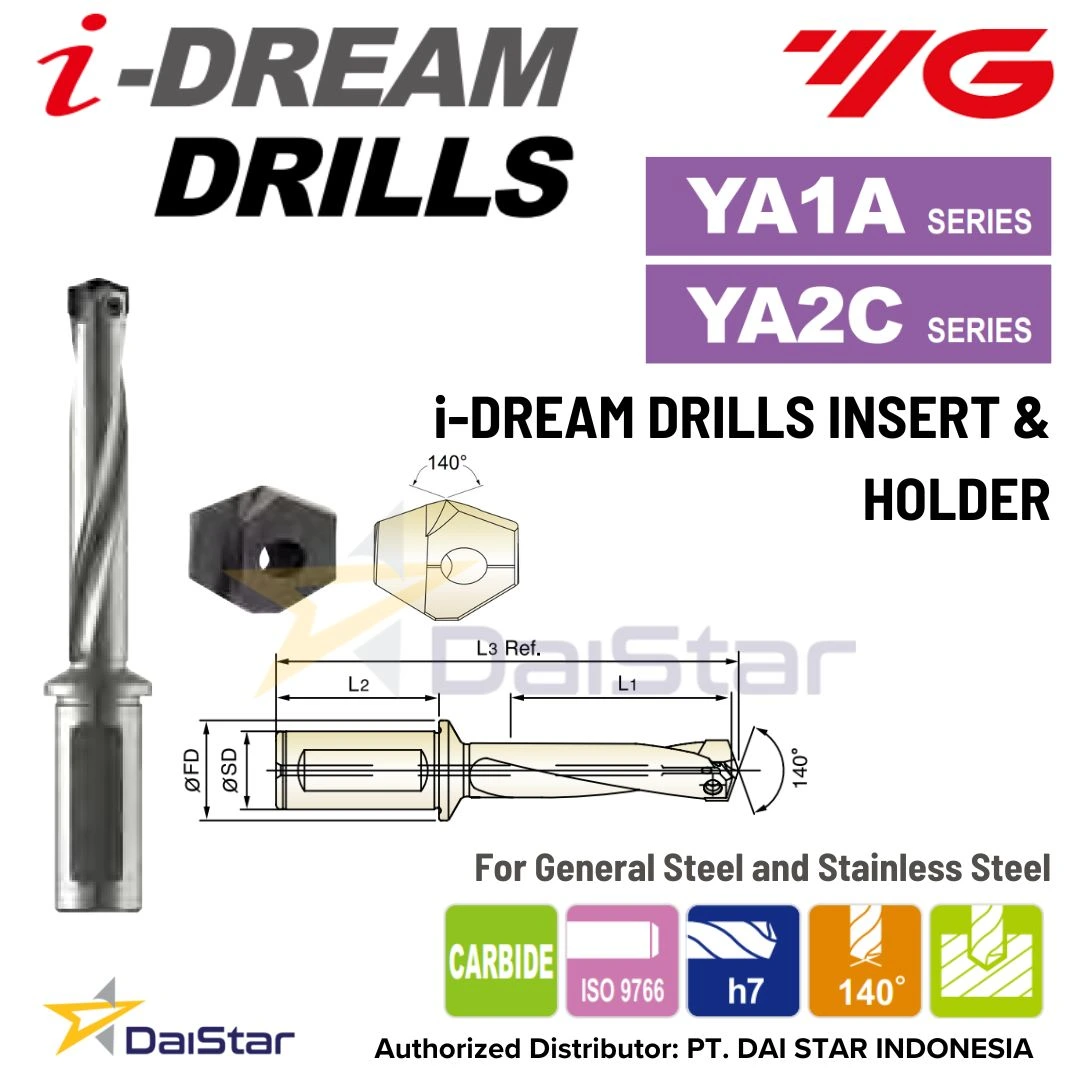

YA1A/YA2C- i – DREAM DRILLS INSERT and HOLDER YG1

Item & Spec : i-Dream
Type Length :
Type : Insert
Cutting Angle : 140°
Available Size : 12.00 – 13.89 mmBrand/Origin YG1 Korea
Series i-Dream
Application –
Distributor PT. DAI STAR INDONESIA

– Features of Inserts-
▶ Secure and accurate seating resulting in accurate repeatability and concentricity
– Features of Holders-
▶ Special Alloy Steels maintain its hardness and toughness under high temperatures.
▶ Innovative surface treatment improves wear resistance and reduces corrosion.
▶ High Performance flute design allows maximum chip evacuation and minimum interference

Category: I-Dream Drill Insert Brand: YG-1

Description
Reviews (0)

Spesifikasi YA1A/YA2C Series – CARBIDE i – DREAM DRILLS INSERT and HOLDER YG1

Series Range

Insert EDP No.

Insert O.D.

Holder EDP No.

Shank Dia.

Shank Length

Flange Dia.

Drilling Depth

Overall Length

Screw No.

(mm)

General (TiAlN)

INOX (TiCN)

L3 Ref.

dec.

frac.

A
Ø12.00
to Ø13.99

YA1A1200 YA1A1210 YA1A1220
YA1A1230

YA2C1200 YA2C1210 YA2C1220
YA2C1230

.4724
.4764
.4803
.4844

–
–
– 31/64

12.00
12.10
12.20
12.30

ZH12003020 ZH12005020
ZH12007020

3D
5D
7D

36
60
84

112.4
136.4
160.4

YA1A1250
YA1A1260

YA2C1250
YA2C1260

.4921
.4961

–
–

12.50
12.60

ZH12503020

37.5

113.4

TX1213T08

YA1A1270
YA1A1280 YA1A1290

YA2C1270
YA2C1280 YA2C1290

.5000
.5039
.5079

1/2
–
–

12.70
12.80
12.90

ZH12505020
ZH12507020

5D
7D

62.5
87.5

138.4
163.4

YA1A1300 YA1A1310 YA1A1320
YA1A1349

YA2C1300 YA2C1310 YA2C1320
YA2C1349

.5118
.5156
.5197
.5312

– 33/64
–
17/32

13.00
13.10
13.20
13.49

ZH13003020 ZH13005020
ZH13007020

3D
5D
7D

39
65
91

115.4
141.4
167.4

YA1A1350
YA1A1360

YA2C1350
YA2C1360

.5315
.5354

–
–

13.50
13.60

ZH13503020

40.5

116.4

TX1314T08

YA1A1370
YA1A1380 YA1A1389

YA2C1370
YA2C1380 YA2C1389

.5394
.5433
.5469

–
– 35/64

13.70
13.80
13.89

ZH13505020
ZH13507020

5D
7D

67.5
94.5

143.4
170.4

Kami adalah Distributor Resmi produk YG1 YA1A/YA2C Series – CARBIDE i – DREAM DRILLS INSERT and HOLDER. Produk YG-1 adalah salah satu Brand yang sudah dikenal di seluruh dunia serta sudah banyak di gunakan oleh berbagai industri manufktur dengan beragam jenis dan kegunaan yang bermacam-macam.
