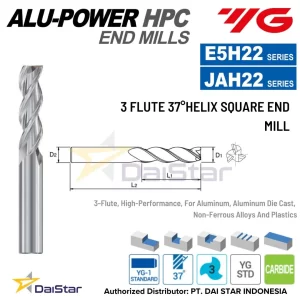

E5H22-JAH22 ALU POWER HPC Carbide Endmill 3 Flute Extended Neck YG-1

Type : Corner radius
Flute : 3
Cutting Edge shape : Square
Helix Angle : 37°
Size min : D6.0
Size max : D20.0

Brand YG1
Series ALU-POWER HPC
Flute 3
Application High performance for Aluminium, Non Ferrous Alloys and Plastics
Coating Uncoated/DLC Coated
Suitable for Material Aluminium, Non-Ferrous Alloys and Plastics
Distributor PT. DAI STAR INDONESIA

▶ Balanced cutting with less vibration
▶ Ability to run at higher speeds with less heat in aluminum
▶ More efficient chip evacuation
▶ Ability to counteract extreme radial forces
▶ DLC Coating provides edge strength and unsurpassed tool life

Category: ALU POWER HPC Tags: 3 flute, Alu power endmill, alu power endmill yg1, corner radius endmill, extended neck endmill, solid carbide endmill

Description
Reviews (0)

Spesifikasi E5H22/JAH22 Series ALU POWER HPC – Solid Carbide Square with Extended Neck Endmill 3 Flute YG1

EDP No.		Mill Diameter	Shank Diameter	Length of Cut	Length Below Shank	Overall Length	Neck Diameter
Uncoated	DLC	D1	D2	L1	L3	L2	D3
E5H23060	JAH23060	6.0	6	10	20	75	5.7
E5H23080	JAH23080	8.0	8	12	25	75	7.4
E5H23100	JAH23100	10.0	10	14	35	100	9.2
E5H23120	JAH23120	12.0	12	16	40	100	11.0
E5H23140	JAH23140	14.0	14	18	45	125	13.0
E5H23160	JAH23160	16.0	16	20	50	125	15.0
E5H23200	JAH23200	20.0	20	25	65	150	19.0

Kami adalah Distributor Resmi produk YG-1 E5H22/JAH22 Series ALU POWER HPC – Solid Carbide Square with Extended Neck Endmill 3 Flute. Produk YG-1 adalah salah satu Brand yang sudah dikenal di seluruh dunia serta sudah banyak di gunakan oleh berbagai industri manufktur dengan beragam jenis dan kegunaan yang bermacam-macam.
