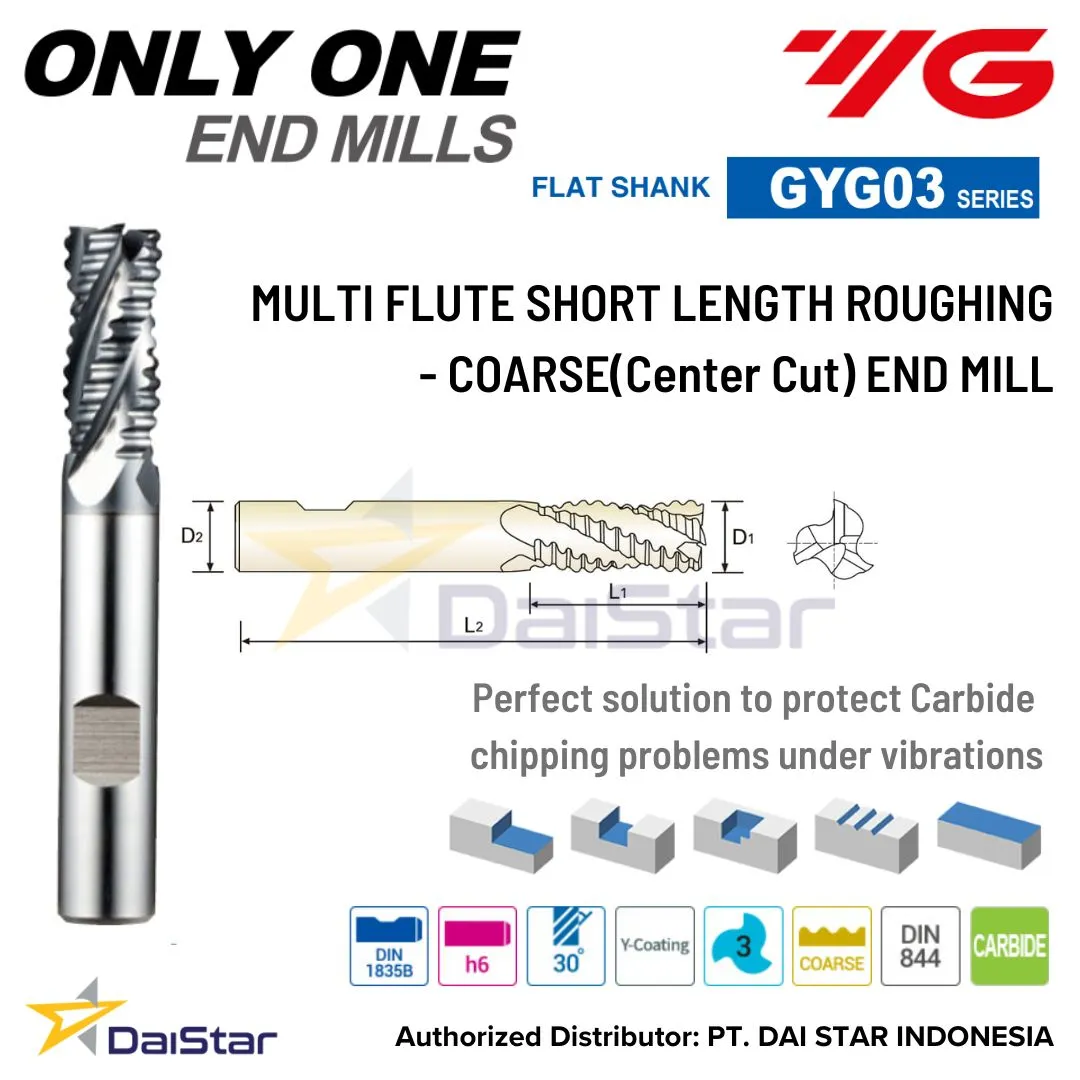

Spesifikasi GYG03 SERIES ONLY ONE – COATED PM60 CORNER RADIUS ROUGHING END MILL MULTI FLUTE SHORT LENGTH – COARSE (Center Cut) YG1
| EDP No. | Mill Diameter | Shank Diameter | Length of Cut | Overall Length | No. of Flute | Chamfer |
| D1(js12) | D2(h6) | L1 | L2 | |||
| GYG03060 | 6.0 | 6 | 13 | 57 | 3 | 0.25 |
| GYG03070 | 7.0 | 10 | 16 | 66 | 3 | 0.25 |
| GYG03080 | 8.0 | 10 | 19 | 69 | 3 | 0.25 |
| GYG03090 | 9.0 | 10 | 19 | 69 | 3 | 0.36 |
| GYG03100 | 10.0 | 10 | 22 | 72 | 4 | 0.36 |
| GYG03120 | 12.0 | 12 | 26 | 83 | 4 | 0.56 |
| GYG03140 | 14.0 | 12 | 26 | 83 | 4 | 0.6 |
| GYG03160 | 16.0 | 16 | 32 | 92 | 4 | 0.6 |
| GYG03180 | 18.0 | 16 | 32 | 92 | 4 | 0.6 |
| GYG03200 | 20.0 | 20 | 38 | 104 | 4 | 0.6 |
| GYG03250 | 25.0 | 25 | 45 | 121 | 5 | 0.6 |
Kami adalah Distributor Resmi produk YG-1 GYG03 Series Coated PM60 Corner Radius Roughing Endmill Multi Flute Short Length. Produk YG-1 adalah salah satu Brand yang sudah dikenal di seluruh dunia serta sudah banyak di gunakan oleh berbagai industri manufktur dengan beragam jenis dan kegunaan yang bermacam-macam.
