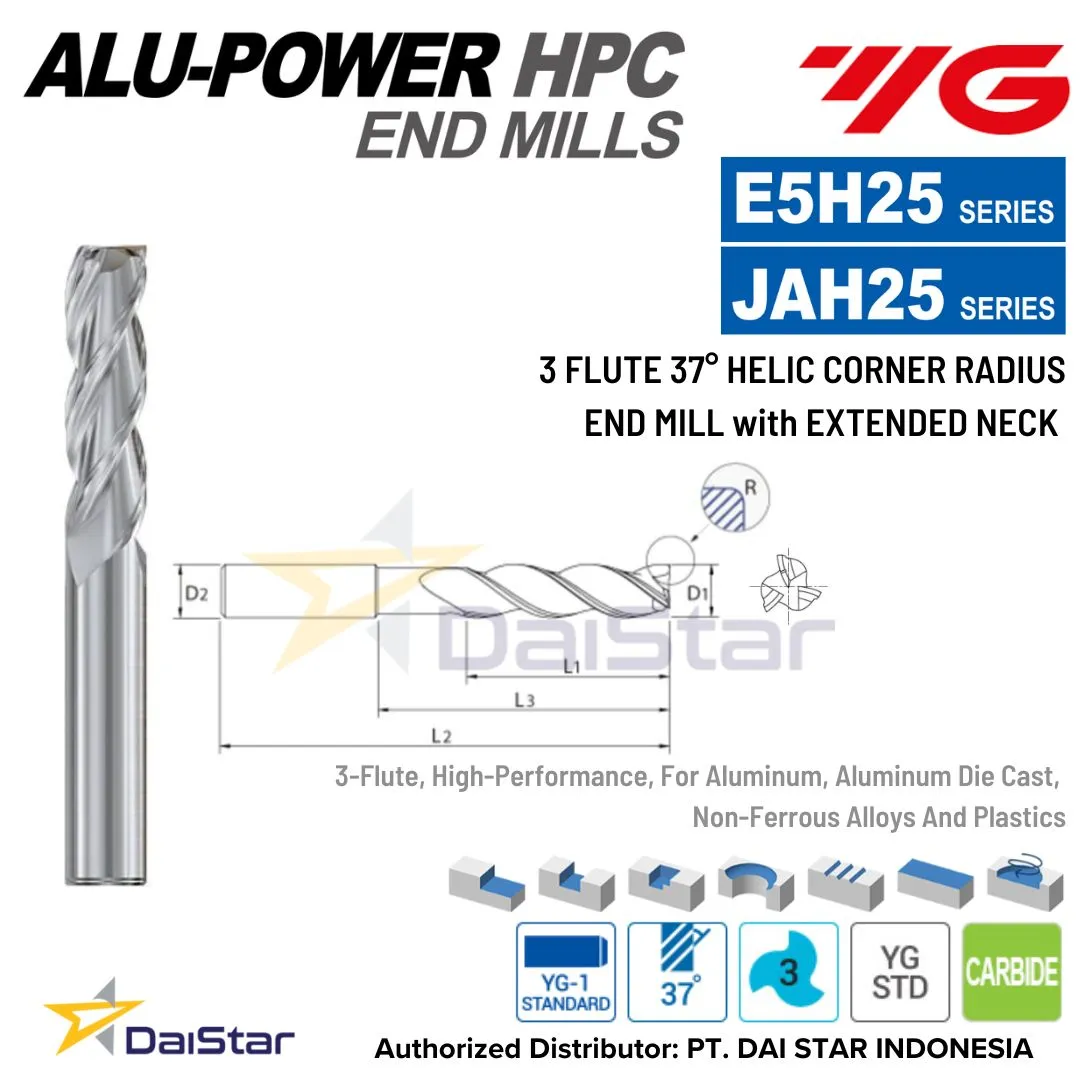

E5H25/JAH25 ALU-POWER HPC Carbide Corner Radius Endmill 3 Flute Extended Neck YG-1

E5H25/JAH25 ALU-POWER HPC Carbide Corner Radius Endmill 3 Flute Extended Neck YG-1

Type : Corner radius
Flute : 3
Cutting Edge shape : Corner radius
Helix Angle : 37°
Size min : D6.0
Size max : D20.0

Brand: YG1
Series: ALU-POWER HPC
Flute: 3
Application: High performance for Aluminium, Non Ferrous Alloys and Plastics
Coating: Uncoated/DLC Coated
Suitable for Material: Aluminium, Non-Ferrous Alloys and Plastics
Distributor: PT. DAI STAR INDONESIA

▶ Balanced cutting with less vibration
▶ Ability to run at higher speeds with less heat in aluminum
▶ More efficient chip evacuation
▶ Ability to counteract extreme radial forces
▶ DLC Coating provides edge strength and unsurpassed tool life

Contact Us
Categories: , , Tags: , , , , ,

Spesifikasi E5H25/JAH25 Series ALU-POWER HPC – Solid Carbide Corner Radius with Extended Neck Endmill 3 Flute YG-1

EDP No.Corner RadiusMill DiameterShank DiameterLength of CutLength Below ShankOverall LengthNeck Diameter
UncoatedDLCRD1D2L1L3L2D3
E5H25060JAH25060R0.56.061020635.7
E5H25901JAH25901R1.06.061020635.7
E5H25902JAH25902R0.56.061330725.7
E5H25903JAH25903R1.06.061330725.7
E5H25080JAH25080R0.38.081225757.4
E5H25904JAH25904R0.58.081225757.4
E5H25905JAH25905R0.88.081225757.4
E5H25906JAH25906R1.08.081225757.4
E5H25907JAH25907R1.28.081225757.4
E5H25908JAH25908R1.58.081225757.4
E5H25909JAH25909R1.68.081225757.4
E5H25100JAH25100R0.310.01014351009.2
E5H25910JAH25910R0.510.01014351009.2
E5H25911JAH25911R0.810.01014351009.2
E5H25912JAH25912R1.010.01014351009.2
E5H25913JAH25913R1.210.01014351009.2
E5H25914JAH25914R1.510.01014351009.2
E5H25915JAH25915R1.610.01014351009.2
E5H25916JAH25916R2.410.01014351009.2
E5H25120JAH25120R0.512.012164010011.0
E5H25917JAH25917R0.812.012164010011.0
E5H25918JAH25918R1.012.012164010011.0
E5H25919JAH25919R1.212.012164010011.0
E5H25920JAH25920R1.512.012164010011.0
E5H25921JAH25921R1.612.012164010011.0
E5H25922JAH25922R2.012.012164010011.0
E5H25923JAH25923R2.412.012164010011.0
E5H25924JAH25924R2.512.012164010011.0
E5H25925JAH25925R3.012.012164010011.0
E5H25926JAH25926R4.012.012164010011.0
E5H25140JAH25140R1.014.014184512513.0
E5H25927JAH25927R2.014.014184512513.0
E5H25928JAH25928R3.014.014184512513.0
E5H25929JAH25929R4.014.014184512513.0
E5H25160JAH25160R0.816.016205012515.0
E5H25930JAH25930R1.216.016205012515.0
E5H25931JAH25931R1.616.016205012515.0
E5H25932JAH25932R2.016.016205012515.0
E5H25933JAH25933R2.416.016205012515.0
E5H25934JAH25934R2.516.016205012515.0
E5H25935JAH25935R3.016.016205012515.0
E5H25936JAH25936R3.216.016205012515.0
E5H25937JAH25937R4.016.016205012515.0
E5H25200JAH25200R0.820.020256515019.0
E5H25938JAH25938R1.220.020256515019.0
E5H25939JAH25939R1.620.020256515019.0
E5H25940JAH25940R2.020.020256515019.0
E5H25941JAH25941R2.420.020256515019.0
E5H25942JAH25942R2.520.020256515019.0
E5H25943JAH25943R3.020.020256515019.0
E5H25944JAH25944R3.220.020256515019.0
E5H25945JAH25945R4.020.020256515019.0

Kami adalah Distributor Resmi produk YG-1 E5H25/JAH25 Series ALU-POWER HPC – Solid Carbide Corner Radius with Extended Neck Endmill 3 Flute. Produk YG-1 adalah salah satu Brand yang sudah dikenal di seluruh dunia serta sudah banyak di gunakan oleh berbagai industri manufktur dengan beragam jenis dan kegunaan yang bermacam-macam.
