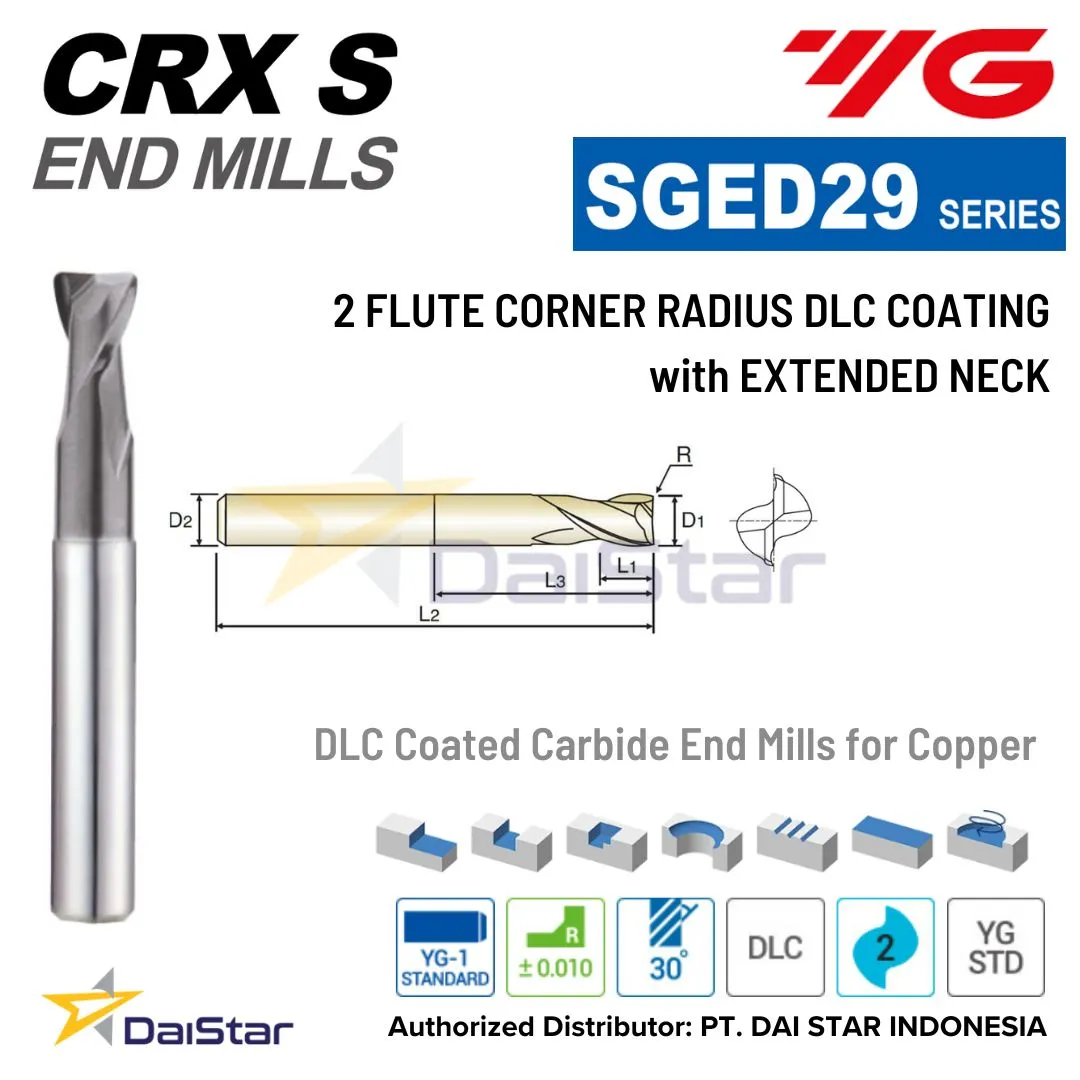

SGED29 Series CRX S – Solid Carbide Corner Radius DLC Coating Endmill 2 Flute with Extended Neck YG-1

Type : Corner radius
Flute : 2
Cutting Edge shape : Corner radius
Helix Angle : 30°
Size min : D1.0
Size max : D12.0

Brand: YG1
Series: CRX S
Flute: 2
Application: DLC Coated Carbide End mills for Copper
Coating: DLC Coated
Suitable for Material: Aluminium, Non-Ferrous Alloys and Plastics
Distributor: PT. DAI STAR INDONESIA

▶ Designed for copper, copper alloys soft graphite, reinforced plastics and the materials affiliated with non-ferrous metals.
▶ Excellent surface roughness thanks to Mirror Face of cutting edges

Categories: CRX S End mill, MILLING TOOLS, SOLID CARBIDE ENDMILL Tags: 2 Flute, Carbide Corner Radius endmill, corner radius, extended neck, extended neck endmill, solid carbide endmill

Description
Reviews (0)

Spesifikasi SGED29 Series CRX S – Solid Carbide Corner radius DLC Coating Endmill 2 Flute with Extended Neck YG-1

EDP No.	Corner Radius	Mill Diameter	Shank Diameter	Length of Cut	Length Below Shank	Overall Length	Neck Diameter
EDP No.	R	^D1	^D2	^L1	L3	^L2	D3
SGED290100104	R0.1	1.0	4	1.5	4	45	0.95
SGED290100106	R0.1	1.0	4	1.5	6	45	0.95
SGED290100108	R0.1	1.0	4	1.5	8	45	0.95
SGED290100204	R0.2	1.0	4	1.5	4	45	0.95
SGED290100206	R0.2	1.0	4	1.5	6	45	0.95
SGED290100208	R0.2	1.0	4	1.5	8	45	0.95
SGED290150106	R0.1	1.5	4	2.3	6	45	1.45
SGED290150108	R0.1	1.5	4	2.3	8	45	1.45
SGED290150110	R0.1	1.5	4	2.3	10	45	1.45
SGED290150206	R0.2	1.5	4	2.3	6	45	1.45
SGED290150208	R0.2	1.5	4	2.3	8	45	1.45
SGED290150210	R0.2	1.5	4	2.3	10	45	1.45
SGED290200208	R0.2	2.0	4	3	8	45	1.95
SGED290200210	R0.2	2.0	4	3	10	45	1.95
SGED290200212	R0.2	2.0	4	3	12	45	1.95
SGED290200508	R0.5	2.0	4	3	8	45	1.95
SGED290200510	R0.5	2.0	4	3	10	45	1.95
SGED290200512	R0.5	2.0	4	3	12	45	1.95
SGED290300210	R0.2	3.0	6	4.5	10	50	2.85
SGED290300212	R0.2	3.0	6	4.5	12	50	2.85
SGED290300216	R0.2	3.0	6	4.5	16	60	2.85
SGED290300310	R0.3	3.0	6	4.5	10	50	2.85
SGED290300312	R0.3	3.0	6	4.5	12	50	2.85
SGED290300316	R0.3	3.0	6	4.5	16	60	2.85
SGED290400212	R0.2	4.0	6	6	12	50	3.85
SGED290400216	R0.2	4.0	6	6	16	60	3.85
SGED290400220	R0.2	4.0	6	6	20	60	3.85
SGED290400512	R0.5	4.0	6	6	12	50	3.85
SGED290400516	R0.5	4.0	6	6	16	60	3.85
SGED290400520	R0.5	4.0	6	6	20	60	3.85
SGED290600320	R0.3	6.0	6	9	20	60	5.85
SGED290600520	R0.5	6.0	6	9	20	60	5.85
SGED290601020	R1.0	6.0	6	9	20	60	5.85
SGED290800325	R0.3	8.0	8	12	25	65	7.70
SGED290800525	R0.5	8.0	8	12	25	65	7.70
SGED290801025	R1.0	8.0	8	12	25	65	7.70
SGED291000530	R0.5	10.0	10	15	30	70	9.70
SGED291001030	R1.0	10.0	10	15	30	70	9.70
SGED291200532	R0.5	12.0	12	18	32	80	11.70
SGED291201032	R1.0	12.0	12	18	32	80	11.70

Kami adalah Distributor Resmi produk YG-1 SGED29 Series CRX S – Solid Carbide Corner radius DLC Coating Endmill 2 Flute with Extended Neck. Produk YG-1 adalah salah satu Brand yang sudah dikenal di seluruh dunia serta sudah banyak digunakan oleh berbagai industri manufaktur dengan beragam jenis dan kegunaan yang bermacam-macam.
