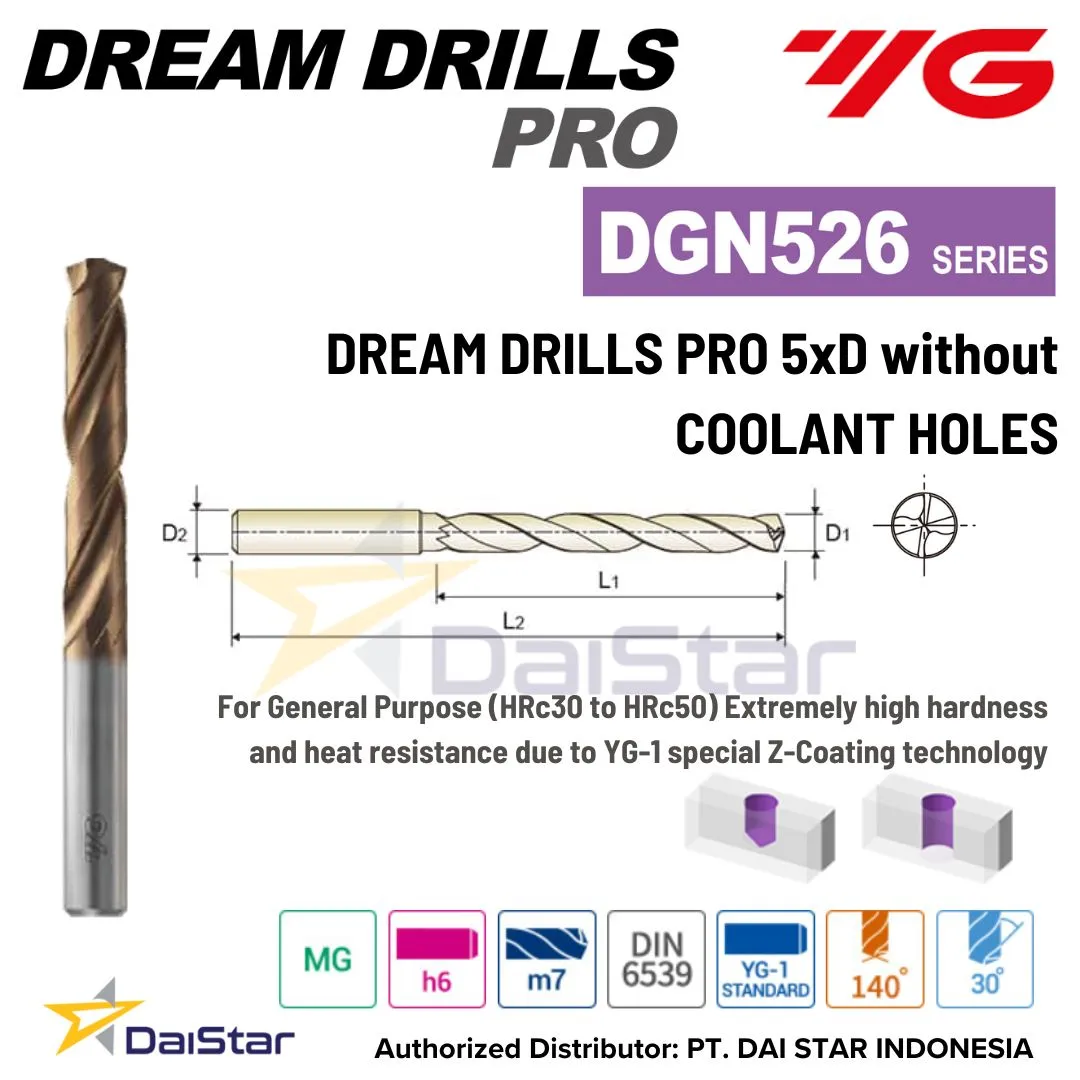

Spesifikasi DGN526 Series – Carbide Dream Drills Pro YG1
| EDP No. | Drill Diameter | Shank Diameter | Flute Length | Overall Length |
| Z-Coating | D1 | D2 | L1 | L2 |
| DGN526010 | 1.0 | 3 | 8 | 55 |
| DGN526011 | 1.1 | 3 | 12 | 55 |
| DGN526012 | 1.2 | 3 | 12 | 55 |
| DGN526013 | 1.3 | 3 | 12 | 55 |
| DGN526014 | 1.4 | 3 | 12 | 55 |
| DGN526015 | 1.5 | 3 | 16 | 55 |
| DGN526016 | 1.6 | 3 | 16 | 55 |
| DGN526017 | 1.7 | 3 | 16 | 55 |
| DGN526018 | 1.8 | 3 | 16 | 55 |
| DGN526019 | 1.9 | 3 | 16 | 55 |
| DGN526020 | 2.0 | 4 | 21 | 57 |
| DGN526021 | 2.1 | 4 | 21 | 57 |
| DGN526022 | 2.2 | 4 | 21 | 57 |
| DGN526023 | 2.3 | 4 | 21 | 57 |
| DGN526024 | 2.4 | 4 | 21 | 57 |
| DGN526025 | 2.5 | 4 | 21 | 57 |
| DGN526026 | 2.6 | 4 | 21 | 57 |
| DGN526027 | 2.7 | 4 | 21 | 57 |
| DGN526028 | 2.8 | 4 | 21 | 57 |
| DGN526029 | 2.9 | 4 | 21 | 57 |
| DGN526030 | 3.0 | 6 | 28 | 66 |
| DGN526031 | 3.1 | 6 | 28 | 66 |
| DGN526032 | 3.2 | 6 | 28 | 66 |
| DGN526033 | 3.3 | 6 | 28 | 66 |
| DGN526034 | 3.4 | 6 | 28 | 66 |
| DGN526035 | 3.5 | 6 | 28 | 66 |
| DGN526036 | 3.6 | 6 | 28 | 66 |
| DGN526037 | 3.7 | 6 | 28 | 66 |
| DGN526038 | 3.8 | 6 | 36 | 74 |
| DGN526039 | 3.9 | 6 | 36 | 74 |
| DGN526040 | 4.0 | 6 | 36 | 74 |
| DGN526041 | 4.1 | 6 | 36 | 74 |
| DGN526042 | 4.2 | 6 | 36 | 74 |
| DGN526043 | 4.3 | 6 | 36 | 74 |
| DGN526044 | 4.4 | 6 | 36 | 74 |
| DGN526045 | 4.5 | 6 | 36 | 74 |
| DGN526046 | 4.6 | 6 | 36 | 74 |
| DGN526047 | 4.7 | 6 | 36 | 74 |
| DGN526048 | 4.8 | 6 | 44 | 82 |
| DGN526049 | 4.9 | 6 | 44 | 82 |
| DGN526050 | 5.0 | 6 | 44 | 82 |
| DGN526051 | 5.1 | 6 | 44 | 82 |
| DGN526052 | 5.2 | 6 | 44 | 82 |
| DGN526053 | 5.3 | 6 | 44 | 82 |
| DGN526054 | 5.4 | 6 | 44 | 82 |
| DGN526055 | 5.5 | 6 | 44 | 82 |
| DGN526056 | 5.6 | 6 | 44 | 82 |
| DGN526057 | 5.7 | 6 | 44 | 82 |
| DGN526058 | 5.8 | 6 | 44 | 82 |
| DGN526059 | 5.9 | 6 | 44 | 82 |
| DGN526060 | 6.0 | 6 | 44 | 82 |
| DGN526062 | 6.2 | 8 | 53 | 91 |
| DGN526063 | 6.3 | 8 | 53 | 91 |
| DGN526064 | 6.4 | 8 | 53 | 91 |
| DGN526065 | 6.5 | 8 | 53 | 91 |
| DGN526066 | 6.6 | 8 | 53 | 91 |
| DGN526067 | 6.7 | 8 | 53 | 91 |
| DGN526068 | 6.8 | 8 | 53 | 91 |
| DGN526069 | 6.9 | 8 | 53 | 91 |
| DGN526070 | 7.0 | 8 | 53 | 91 |
| DGN526071 | 7.1 | 8 | 53 | 91 |
| DGN526072 | 7.2 | 8 | 53 | 91 |
| DGN526073 | 7.3 | 8 | 53 | 91 |
| DGN526074 | 7.4 | 8 | 53 | 91 |
| DGN526075 | 7.5 | 8 | 53 | 91 |
| DGN526076 | 7.6 | 8 | 53 | 91 |
| DGN526077 | 7.7 | 8 | 53 | 91 |
| DGN526078 | 7.8 | 8 | 53 | 91 |
| DGN526079 | 7.9 | 8 | 53 | 91 |
| DGN526080 | 8.0 | 8 | 53 | 91 |
| DGN526081 | 8.1 | 10 | 61 | 103 |
| DGN526082 | 8.2 | 10 | 61 | 103 |
| DGN526083 | 8.3 | 10 | 61 | 103 |
| DGN526084 | 8.4 | 10 | 61 | 103 |
| DGN526085 | 8.5 | 10 | 61 | 103 |
| DGN526086 | 8.6 | 10 | 61 | 103 |
| DGN526087 | 8.7 | 10 | 61 | 103 |
| DGN526088 | 8.8 | 10 | 61 | 103 |
| DGN526089 | 8.9 | 10 | 61 | 103 |
| DGN526090 | 9.0 | 10 | 61 | 103 |
| DGN526091 | 9.1 | 10 | 61 | 103 |
| DGN526092 | 9.2 | 10 | 61 | 103 |
| DGN526093 | 9.3 | 10 | 61 | 103 |
| DGN526094 | 9.4 | 10 | 61 | 103 |
| DGN526095 | 9.5 | 10 | 61 | 103 |
| DGN526096 | 9.6 | 10 | 61 | 103 |
| DGN526097 | 9.7 | 10 | 61 | 103 |
| DGN526098 | 9.8 | 10 | 61 | 103 |
| DGN526099 | 9.9 | 10 | 61 | 103 |
| DGN526100 | 10.0 | 10 | 61 | 103 |
| DGN526101 | 10.1 | 12 | 71 | 118 |
| DGN526102 | 10.2 | 12 | 71 | 118 |
| DGN526103 | 10.3 | 12 | 71 | 118 |
| DGN526104 | 10.4 | 12 | 71 | 118 |
| DGN526105 | 10.5 | 12 | 71 | 118 |
| DGN526106 | 10.6 | 12 | 71 | 118 |
| DGN526107 | 10.7 | 12 | 71 | 118 |
| DGN526108 | 10.8 | 12 | 71 | 118 |
| DGN526109 | 10.9 | 12 | 71 | 118 |
| DGN526110 | 11.0 | 12 | 71 | 118 |
| DGN526111 | 11.1 | 12 | 71 | 118 |
| DGN526112 | 11.2 | 12 | 71 | 118 |
| DGN526113 | 11.3 | 12 | 71 | 118 |
| DGN526114 | 11.4 | 12 | 71 | 118 |
| DGN526115 | 11.5 | 12 | 71 | 118 |
| DGN526116 | 11.6 | 12 | 71 | 118 |
| DGN526117 | 11.7 | 12 | 71 | 118 |
| DGN526118 | 11.8 | 12 | 71 | 118 |
| DGN526119 | 11.9 | 12 | 71 | 118 |
| DGN526120 | 12.0 | 12 | 71 | 118 |
| DGN526122 | 12.2 | 14 | 77 | 124 |
| DGN526125 | 12.5 | 14 | 77 | 124 |
| DGN526128 | 12.8 | 14 | 77 | 124 |
| DGN526130 | 13.0 | 14 | 77 | 124 |
| DGN526135 | 13.5 | 14 | 77 | 124 |
| DGN526138 | 13.8 | 14 | 77 | 124 |
| DGN526140 | 14.0 | 14 | 77 | 124 |
| DGN526142 | 14.2 | 16 | 83 | 133 |
| DGN526145 | 14.5 | 16 | 83 | 133 |
| DGN526148 | 14.8 | 16 | 83 | 133 |
| DGN526150 | 15.0 | 16 | 83 | 133 |
| DGN526152 | 15.2 | 16 | 83 | 133 |
| DGN526155 | 15.5 | 16 | 83 | 133 |
| DGN526158 | 15.8 | 16 | 83 | 133 |
| DGN526160 | 16.0 | 16 | 83 | 133 |
| DGN526165 | 16.5 | 18 | 93 | 143 |
| DGN526170 | 17.0 | 18 | 93 | 143 |
| DGN526173 | 17.3 | 18 | 93 | 143 |
| DGN526175 | 17.5 | 18 | 93 | 143 |
| DGN526177 | 17.7 | 18 | 93 | 143 |
| DGN526180 | 18.0 | 18 | 93 | 143 |
| DGN526185 | 18.5 | 20 | 101 | 153 |
| DGN526190 | 19.0 | 20 | 101 | 153 |
| DGN526193 | 19.3 | 20 | 101 | 153 |
| DGN526195 | 19.5 | 20 | 101 | 153 |
| DGN526200 | 20.0 | 20 | 101 | 153 |
Kami adalah Distributor Resmi produk YG1 DGN526 Series – Solid Carbide Dream Drills Pro. Produk YG-1 adalah salah satu Brand yang sudah dikenal di seluruh dunia serta sudah banyak digunakan oleh berbagai industri manufaktur dengan beragam jenis dan kegunaan yang bermacam-macam.
