K2112 – HSS Chucking Reamer LH Spiral Flute Taper Shank YG-1

Name: K2112 – HSS Chucking Reamer LH Spiral Flute Taper Shank YG-1
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

Item & Spec : Reamers
Type Length :
Type : LH Spiral
Cutting Angle :
Available Size : D10.0 – D50.0 mm
Surface Treatment Bright
Suitable for Material Steel, Stainless steel, Cast Iron, Aluminium

Brand/Origin YG1 Korea
Series Reamers
Application –
Distributor PT. DAI STAR INDONESIA

▶ O.D. Tolerances : DIN 1420 for H7
▶ LH Spiral Flutes / Right Hand Cut
▶ Chamfer Angle : 45°

Categories: HOLE MAKING, HSS Reamer, REAMERS Tags: HSS-E Reamers, morse taper shank chucking reamers, reamers

Description
Reviews (1)

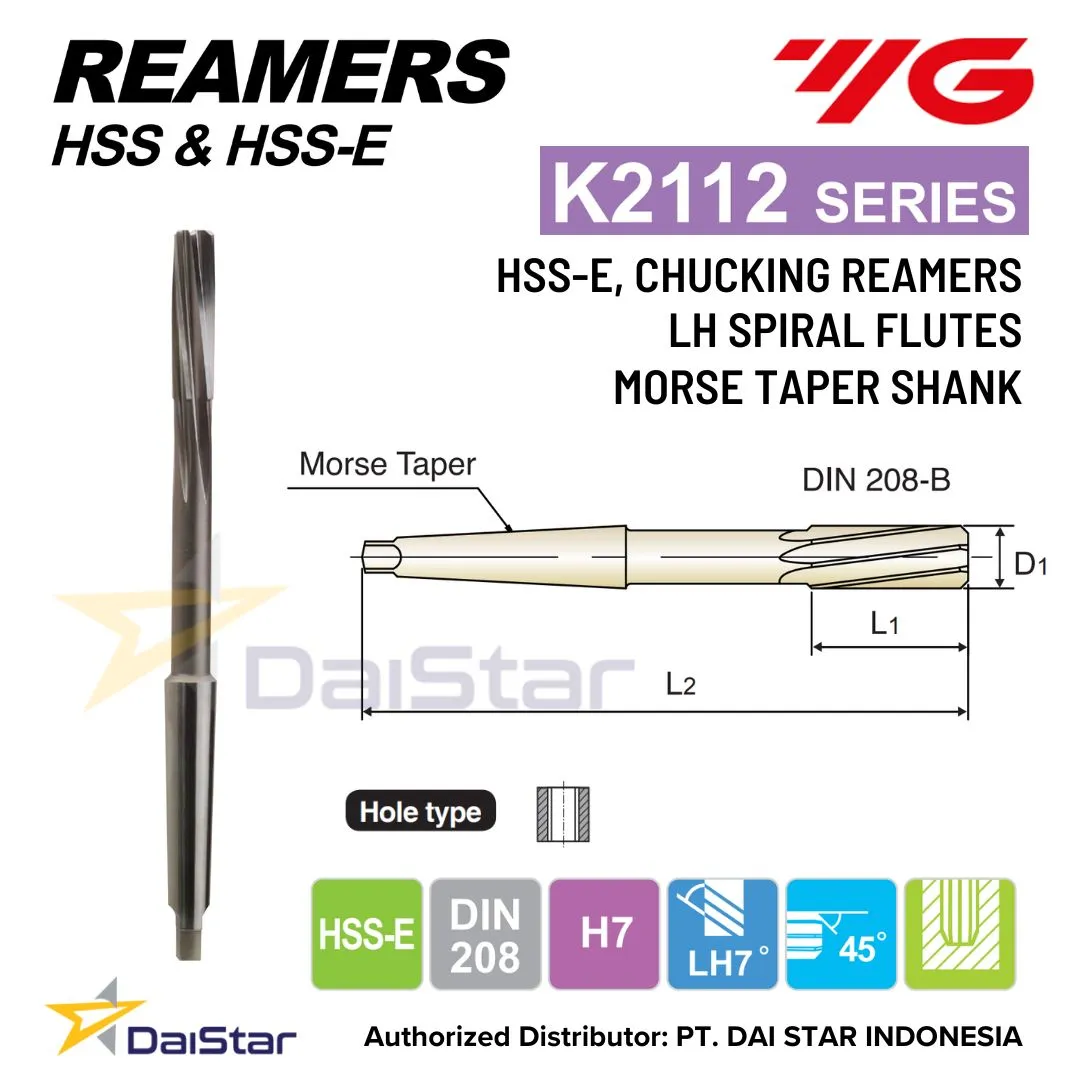

Spesifikasi K2112 Series – HSS-E Morse Taper Shank Chucking Reamers – LH Spiral Flutes YG-1

EDP No.	Reamer Diameter	No. of Morse Taper	Cutting Length	Overall Length	No. of Flute
EDP No.	D1	No. of Morse Taper	L1	L2	No. of Flute
K211201000	10.0	1	38	168	6
K211201100	11.0	1	41	175	6
K211201200	12.0	1	44	182	6
K211201300	13.0	1	44	182	6
K211201400	14.0	1	47	189	8
K211201500	15.0	2	50	204	8
K211201600	16.0	2	52	210	8
K211201700	17.0	2	54	214	8
K211201800	18.0	2	56	219	8
K211201900	19.0	2	58	223	8
K211202000	20.0	2	60	228	8
K211202100	21.0	2	62	232	8
K211202200	22.0	2	64	237	8
K211202300	23.0	2	66	241	8
K211202400	24.0	3	68	268	8
K211202500	25.0	3	68	268	8
K211202600	26.0	3	70	273	8
K211202700	27.0	3	71	277	10
K211202800	28.0	3	71	277	10
K211202900	29.0	3	73	281	10
K211203000	30.0	3	73	281	10
K211203100	31.0	3	75	285	10
K211203200	32.0	4	77	317	10
K211203400	34.0	4	78	321	10
K211203500	35.0	4	78	321	10
K211203600	36.0	4	79	325	10
K211203800	38.0	4	81	329	10
K211204000	40.0	4	81	329	10
K211204100	41.0	4	82	333	12
K211204200	42.0	4	82	333	12
K211204300	43.0	4	83	336	12
K211204400	44.0	4	83	336	12
K211204500	45.0	4	83	336	12
K211204600	46.0	4	84	340	12
K211204700	47.0	4	84	340	12
K211204800	48.0	4	86	344	12
K211205000	50.0	4	86	344	12

Kami adalah Distributor Resmi produk YG1 K2112 Series – HSS-E Morse Taper Shank Chucking Reamer – LH Spiral Flutes. Produk YG-1 adalah salah satu Brand yang sudah dikenal di seluruh dunia serta sudah banyak digunakan oleh berbagai industri manufaktur dengan beragam jenis dan kegunaan yang bermacam-macam.
