T3121 Series JIS I-TYPE Spiral Flute TiN YG1

T3121- I-SF YG Tap General Spiral Flute TiN YG-1

Item & Spec: General Taps
Type: General Taps
Thread form: M
Hole Type: Blind Hole
Material : HSS-E
Flute Type : Spiral Flute
Flute angle: R40
Surface Treatment: TiN
Suitable for Material: Steel, Aluminium, Cast Iron, Stainless stell

Brand/Origin YG 1
Series General Taps
Application
Distributor PT. DAI STAR INDONESIA

► Suitable for tapping Blind holes in Carbon Steels and Alloy Steels. Long tool life and high speed tapping

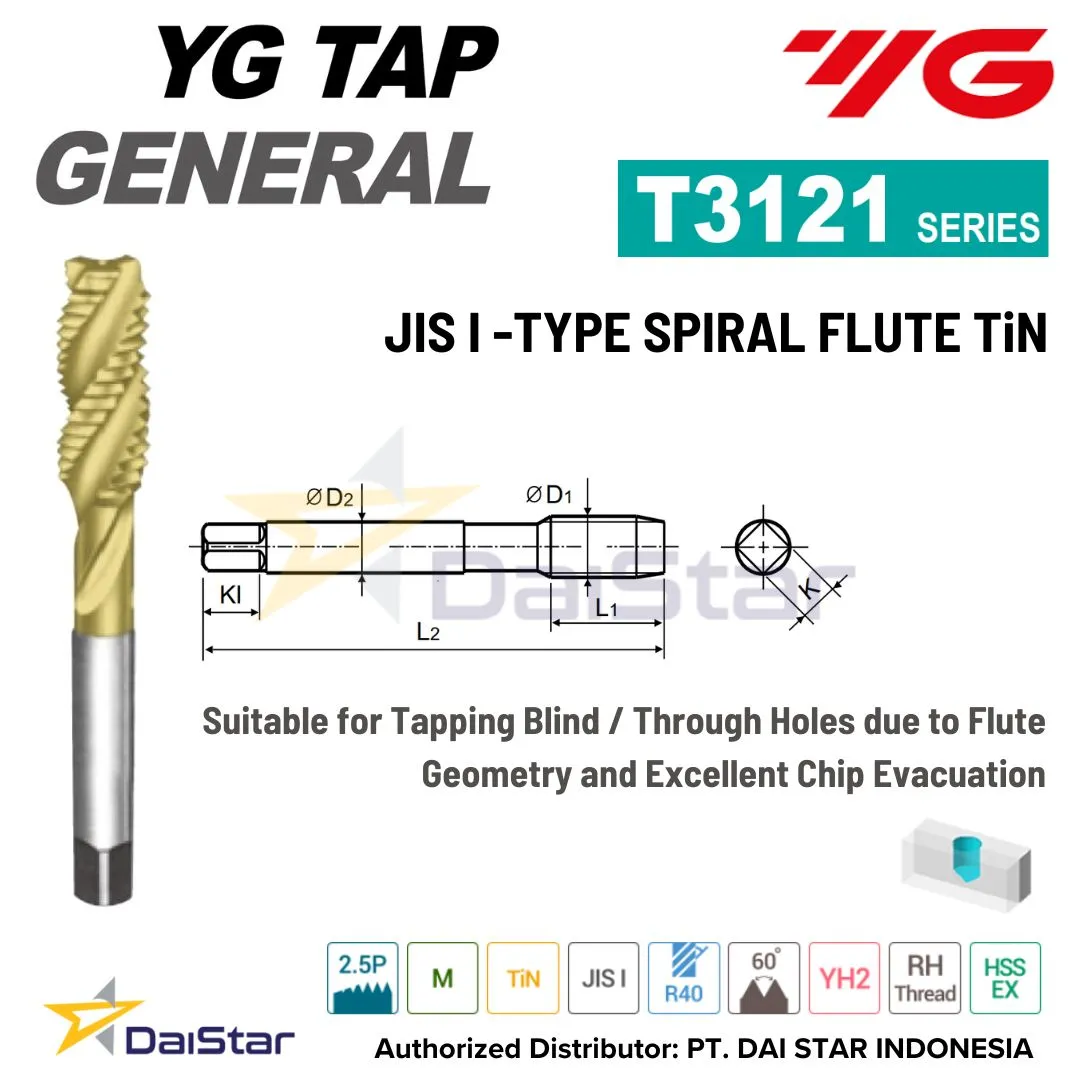

Spesifikasi T3121 Series JIS I-TYPE Spiral Flute TiN YG1

SIZE		Pitch	EDP No.	Limit	Overall Length	Thread Length	Shank Diameter	Square Size	Square Length	No. of Flute
ØD1		P	EDP No.	Limit	L2	L1	ØD2	K	Kl	No. of Flute
M3	×	0.5	T3121202	YH2	46	11	4	3.2	6	3
M3.5	×	0.6	T3121222	YH2	48	13	4	3.2	6	3
M4	×	0.7	T3121242	YH2	52	13	5	4	7	3
M5	×	0.8	T3121282	YH2	60	16	5.5	4.5	7	3
M6	×	1	T3121312	YH2	62	19	6	4.5	7	3
M8	×	1.25	T3121362	YH2	70	22	6.2	5	8	3
M10	×	1.5	T3121422	YH2	75	24	7	5.5	8	3
M10	×	1.25	T3121432	YH2	75	24	7	5.5	8	3
M12	×	1.75	T3121502	YH2	82	29	8.5	6.5	9	3
M12	×	1.5	T3121512	YH2	82	29	8.5	6.5	9	3
M12	×	1.25	T3121522	YH2	82	29	8.5	6.5	9	3
M14	×	2	T3121542	YH2	88	30	10.5	8	11	3
M14	×	1.5	T3121552	YH2	88	30	10.5	8	11	3
M16	×	2	T3121602	YH2	95	32	12.5	10	13	3
M16	×	1.5	T3121612	YH2	95	32	12.5	10	13	3
M18	×	2.5	T3121653	YH3	100	37	14	11	14	4
M18	×	1.5	T3121672	YH2	100	37	14	11	14	4
M20	×	2.5	T3121703	YH3	105	37	15	12	15	4
M20	×	1.5	T3121723	YH3	105	37	15	12	15	4

Kami adalah Distributor Resmi produk YG-1 T3121 Series JIS I-TYPE Spiral Flute TiN. Produk YG-1 adalah salah satu Brand yang sudah dikenal di seluruh dunia serta sudah banyak di gunakan oleh berbagai industri manufktur dengan beragam jenis dan kegunaan yang bermacam-macam.
