T1182 Series – I-SP SPIRAL Flute Tap for Deep Holes (for General Purpose) YG1

Item & Spec: General Taps
Type: General Taps
Thread form: W
Hole Type: Blind Hole
Material : HSS-E
Flute Type : Spiral Flute
Flute angle: R40
Surface Treatment: Steam homo
Suitable for Material: Steel, Aluminium, Cast Iron, Stainless stell

Brand/Origin YG 1
Series General Taps
Application
Distributor PT. DAI STAR INDONESIA

► Suitable for tapping Blind holes in Carbon Steels and Alloy Steels, where chips are produced in a continuous coil state.

Categories: THREADING, YG Tap General Tags: general tap, hss tap, yg1 tap

Description
Reviews (0)

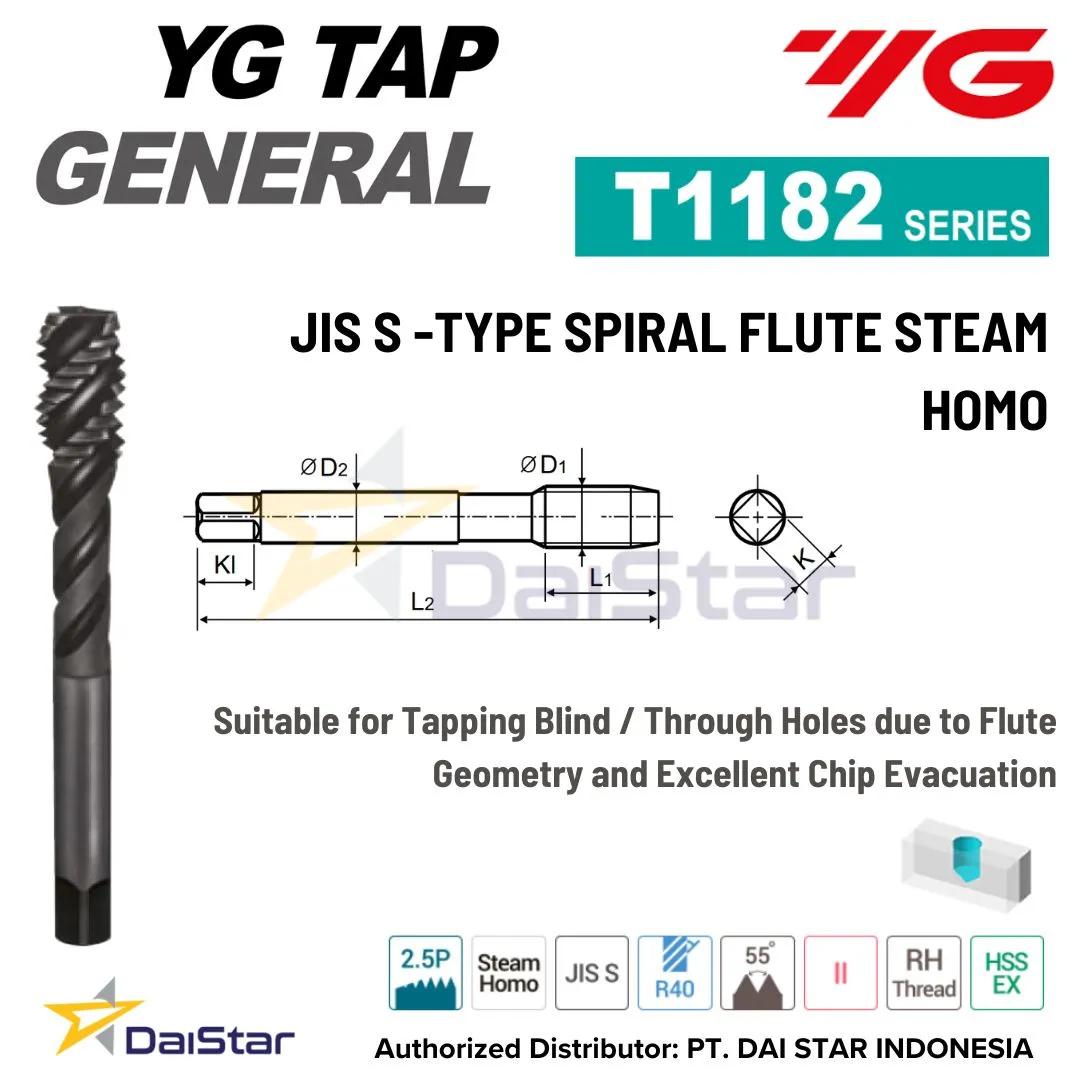

Spesifikasi T1182 Series – I-SP SPIRAL Flute Tap for Deep Holes (for General Purpose) YG1

SIZE	Pitch		EDP No.	Limit	Overall Length	Thread Length	Shank Diameter	Square Size	Square Length	No. of Flute
ØD1	P		EDP No.	Limit	L2	L1	ØD2	K	Kl	No. of Flute
W1/8	–	40	T1182202	JISⅡ	46	6	4	3.2	6	3
W3/16	–	24	T1182322	JISⅡ	60	10	5.5	4.5	7	3
W1/4	–	20	T1182402	JISⅡ	62	12	6	4.5	7	3
W5/16	–	18	T1182442	JISⅡ	70	14	6.1	5	8	3
W3/8	–	16	T1182482	JISⅡ	75	15	7	5.5	8	3
W7/16	–	14	T1182522	JISⅡ	80	18	8	6	9	3
W1/2	–	12	T1182562	JISⅡ	85	19	9	7	10	3
W9/16	–	12	T1182602	JISⅡ	90	21	10.5	8	11	3
W5/8	–	11	T1182642	JISⅡ	95	23	12	9	12	3
W3/4	–	10	T1182702	JISⅡ	105	25	14	11	14	4
W7/8	–	9	T1182742	JISⅡ	115	28	17	13	16	4
W1″	–	8	T1182782	JISⅡ	125	31	20	15	18	4

Kami adalah Distributor Resmi produk YG-1 T1182 Series – I-SP SPIRAL Flute Tap for Deep Holes (for General Purpose). Produk YG-1 adalah salah satu Brand yang sudah dikenal di seluruh dunia serta sudah banyak di gunakan oleh berbagai industri manufktur dengan beragam jenis dan kegunaan yang bermacam-macam.
