T0451/T0441 Series - Solid Carbide Straight Flute Tap for Cast Irons YG1

T0451/T0441 Series – Solid Carbide Straight Flute Tap for Cast Irons YG1

Item & Spec: YG Tap Cast iron
Type: YG Tap Cast iron
Thread form: M/MF
Hole Type: Blind/Through Hole
Material : Carbide
Flute Type : Straight Flute
Helix angle:
Surface Treatment: Bright
Suitable for Material: Aluminium, Cast Iron

Brand/Origin YG 1
Series YG Tap Cast iron
Application
Distributor PT. DAI STAR INDONESIA

► Suitable for tapping Blind & Through holes in Grey Cast Iron, Nodular Cast Iron, Malleable Cast Iron Brass Casting and other similar materials

Spesifikasi T0451/T0441 Series – Solid Carbide Straight Flute Tap for Cast Irons YG1

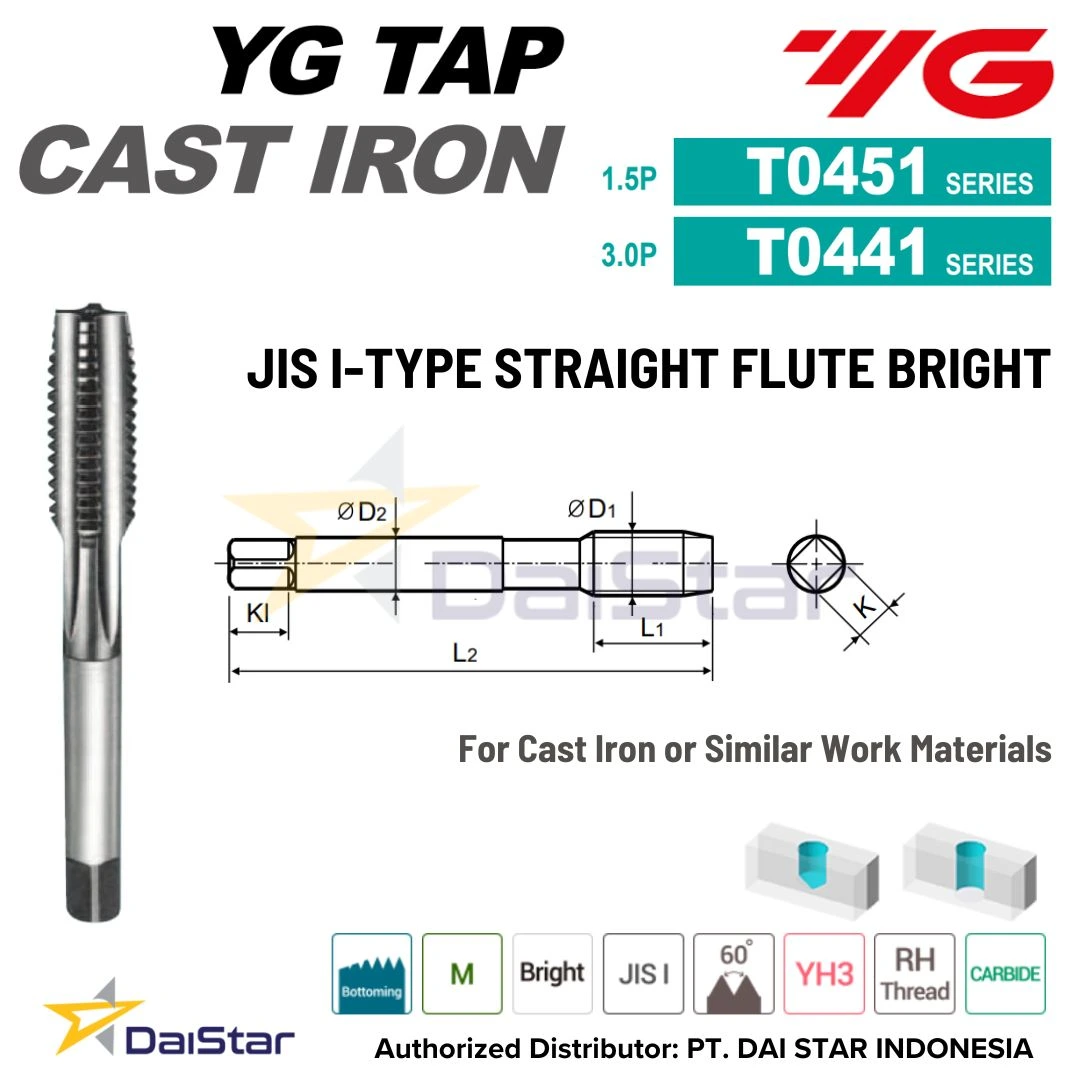

SIZE		Pitch	EDP No.		Limit	Overall Length	Thread Length	Shank Diameter	Square Size	Square Length	No. of Flute
ØD1		P	1.5P	3.0P	Limit	L2	L1	ØD2	K	Kl	No. of Flute
M3	×	0,5	T0451203	T0441203	YH3	46	11	4	3,2	6	3
M4	×	0,7	T0451243	T0441243	YH3	52	13	5	4	7	3
M5	×	0,8	T0451283	T0441283	YH3	60	16	5,5	4,5	7	3
M6	×	1	T0451313	T0441313	YH3	62	19	6	4,5	7	3
M8	×	1,25	T0451364	T0441364	YH4	70	22	6,2	5	8	4
M10	×	1,5	T0451424	T0441424	YH4	75	24	7	5,5	8	4
M12	×	1,75	T0451505	T0441505	YH5	82	29	8,5	6,5	9	4
