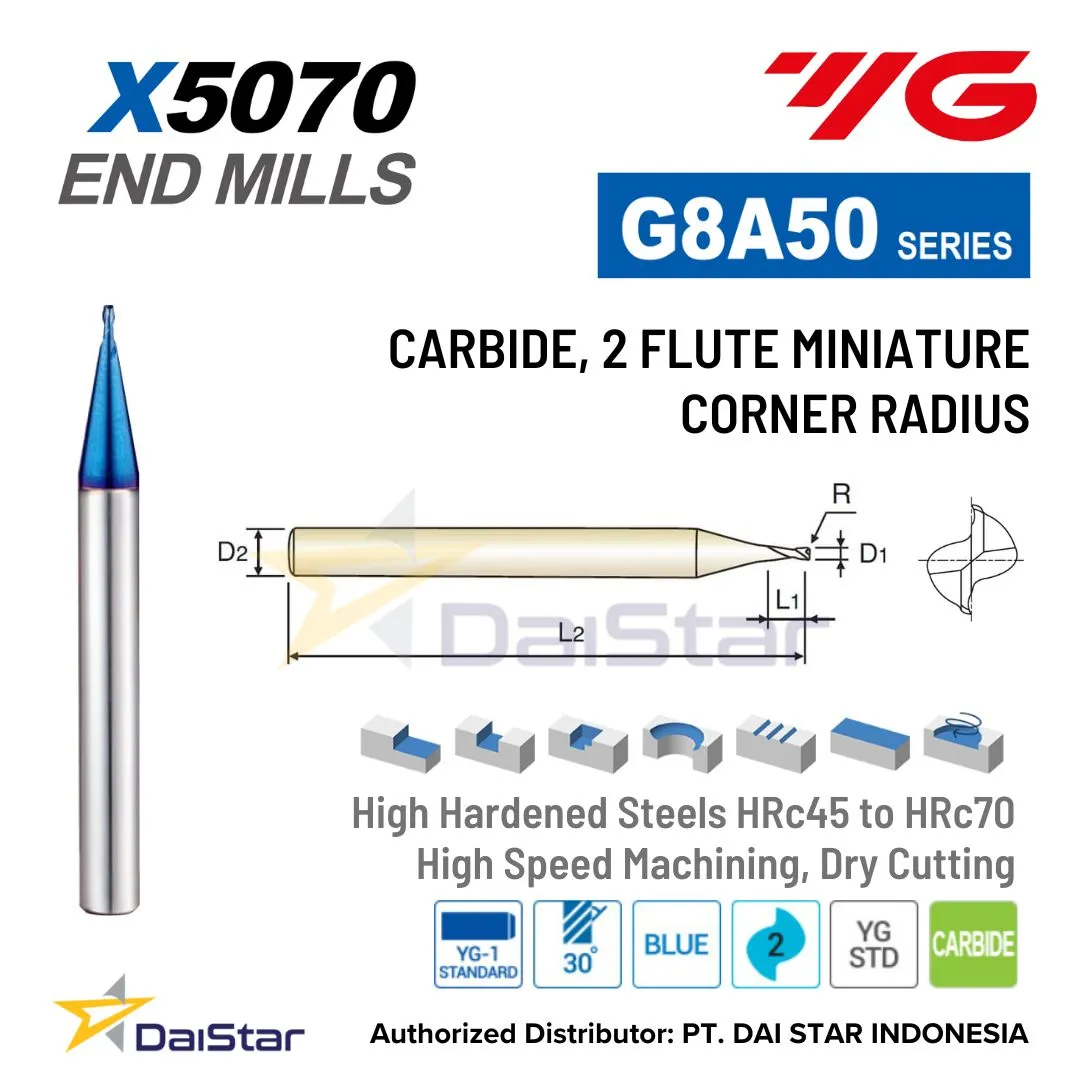

Type : Corner Radius
Flute : 2
Cutting Edge shape : Corner Radius
Helix Angle : 30°
Size min : D0.3
Size max : D2.0
Brand YG1
Series X5070
Flute 2
Application High speed
Coating Blue coating
Suitable for Material Steel,Hardened steel start 45 HRc up to 70 HRc
Distributor PT. DAI STAR INDONESIA
▶ Designed to machine high hardened materials.
▶ Suitable for dry cutting, high speed cutting thanks to newly developed raw-material and new coating.
▶ Excellent workpiece finish.
▶ Deep slotting is possible by reduced neck
▶ Corner radius for preventing the chipping in high speed machining
▶ Higher wear-resistance.
| EDP No. | Corner Radius | Mill Diameter | Shank Diameter | Length of Cut | Overall Length |
| R | D1 | D2 | L1 | L2 | |
| G8A50003 | – | 0,3 | 6 | 0,45 | 50 |
| G8A50004 | – | 0,4 | 6 | 0,6 | 50 |
| G8A50005 | R0.05 | 0,5 | 6 | 0,7 | 50 |
| G8A50006 | R0.05 | 0,6 | 6 | 0,9 | 50 |
| G8A50008 | R0.05 | 0,8 | 6 | 1,2 | 50 |
| G8A50010 | R0.10 | 1,0 | 6 | 1,5 | 50 |
| G8A50012 | R0.10 | 1,2 | 6 | 1,8 | 50 |
| G8A50015 | R0.15 | 1,5 | 6 | 2,2 | 50 |
| G8A50020 | R0.15 | 2,0 | 6 | 2,2 | 50 |
