T3022 Series - I-GP Spiral Point Tap YG1

T3022 Series – I-GP Spiral Point Tap YG1

Item & Spec: General Taps
Type: General Taps
Thread form: M
Hole Type: Blind Hole
Material : HSS-E
Flute Type : Spiral Flute
Flute angle:
Surface Treatment: TiN
Suitable for Material: Steel, Aluminium, Cast Iron, Stainless stell

Brand/Origin YG 1
Series General Taps
Application
Distributor PT. DAI STAR INDONESIA

► Suitable for tapping Blind holes in Carbon Steels and Alloy Steels, where chips are produced in a continuous coil state.

Spesifikasi T3022 Series – I-GP Spiral Point Tap YG1

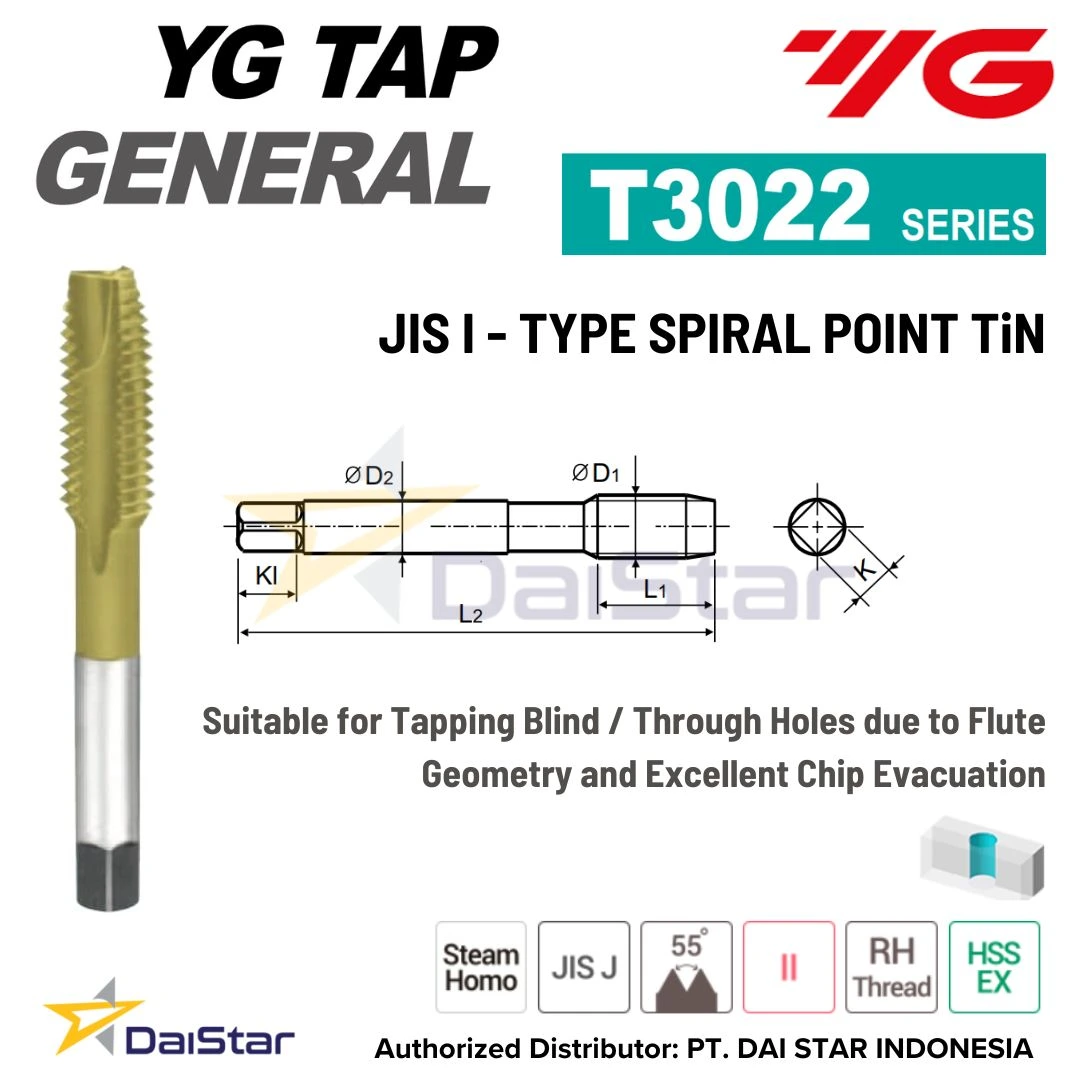

SIZE		Pitch	EDP No.	Limit	Overall Length	Thread Length	Shank Diameter	Square Size	Square Length	No. of Flute
ØD1		P	EDP No.	Limit	L2	L1	ØD2	K	Kl	No. of Flute
M3	×	0,5	T3022202	YH2	46	11	4	3,2	6	3
M3.5	×	0,6	T3022222	YH2	48	13	4	3,2	6	3
M4	×	0,7	T3022242	YH2	52	13	5	4	7	3
M5	×	0,8	T3022282	YH2	60	16	5,5	4,5	7	3
M6	×	1	T3022312	YH2	62	19	6	4,5	7	3
M8	×	1,25	T3022363	YH3	70	22	6,2	5	8	3
M10	×	1,5	T3022423	YH3	75	24	7	5,5	8	3
M10	×	1,25	T3022433	YH3	75	24	7	5,5	8	3
M12	×	1,75	T3022504	YH4	82	29	8,5	6,5	9	3
M12	×	1,5	T3022513	YH3	82	29	8,5	6,5	9	3
M12	×	1,25	T3022523	YH3	82	29	8,5	6,5	9	3
M14	×	2	T3022544	YH4	88	30	10,5	8	11	3
M14	×	1,5	T3022553	YH3	88	30	10,5	8	11	3
M16	×	2	T3022604	YH4	95	32	12,5	10	13	3
M16	×	1,5	T3022613	YH3	95	32	12,5	10	13	3
M18	×	2,5	T3022654	YH4	100	37	14	11	14	3
M18	×	1,5	T3022674	YH4	100	37	14	11	14	3
M20	×	2,5	T3022704	YH4	105	37	15	12	15	3
M20	×	1,5	T3022724	YH4	105	37	15	12	15	3

Kami adalah Distributor Resmi produk YG1 T3022 Series – I-GP Spiral Point Tap. Produk YG-1 adalah salah satu Brand yang sudah dikenal di seluruh dunia serta sudah banyak digunakan oleh berbagai industri manufaktur dengan beragam jenis dan kegunaan yang bermacam-macam.
