T1282 Series - I-GP Spiral Point Taps for General Purpose YG1

T1282 Series – I-GP Spiral Point Tap for General Purpose YG1

Item & Spec: General Taps
Type: General Taps
Thread form: M
Hole Type: Blind Hole
Material : HSS-E
Flute Type : Spiral Flute
Flute angle:
Surface Treatment: Steam Homo
Suitable for Material: Steel, Aluminium, Cast Iron, Stainless stell

Brand/Origin YG 1
Series General Taps
Application
Distributor PT. DAI STAR INDONESIA

► Suitable for tapping Blind holes in Carbon Steels and Alloy Steels, where chips are produced in a continuous coil state.

Spesifikasi T1282 Series – I-GP Spiral Point Tap for General Purpose YG1

SIZE		TPI	EDP No.	Limit	Overall Length	Thread Length	Shank Diameter	Square Size	Square Length	No. of Flute

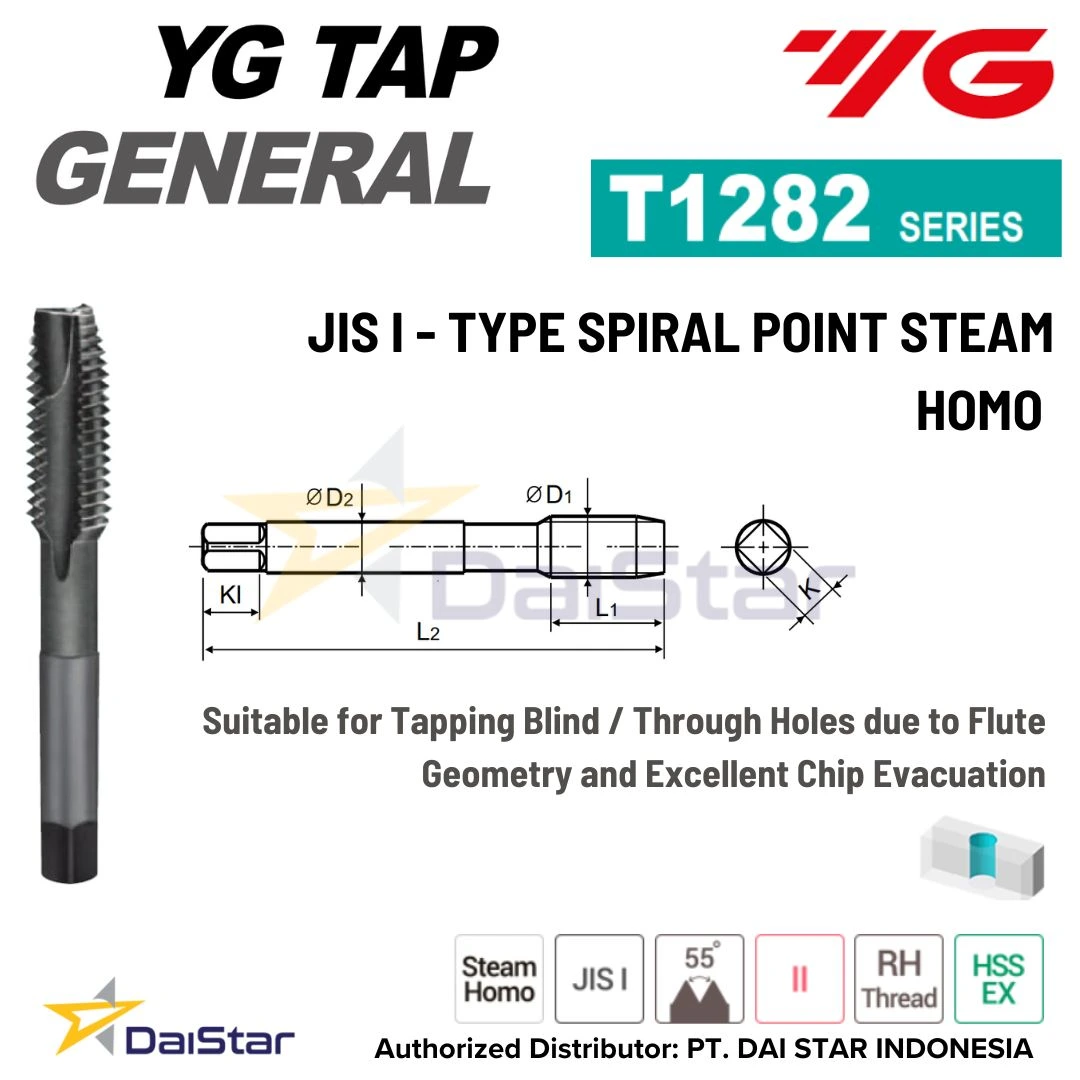

ØD1		p	EDP No.	Limit	L2	L1	ØD2	K	Kl	No. of Flute
W1/8	–	40	T1282202	JISⅡ	46	11	4	3,2	6	3
W3/16	–	24	T1282322	JISⅡ	60	16	5,5	4,5	7	3
W1/4	–	20	T1282402	JISⅡ	62	19	6	4,5	7	3
W5/16	–	18	T1282442	JISⅡ	70	22	6,1	5	8	3
W3/8	–	16	T1282482	JISⅡ	75	24	7	5,5	8	3
W7/16	–	14	T1282522	JISⅡ	80	25	8	6	9	3
W1/2	–	12	T1282562	JISⅡ	85	29	9	7	10	3
W9/16	–	12	T1282602	JISⅡ	90	30	10,5	8	11	3
W5/8	–	11	T1282642	JISⅡ	95	32	12	9	12	3
W3/4	–	10	T1282702	JISⅡ	105	37	14	11	14	3
W7/8	–	9	T1282742	JISⅡ	115	38	17	13	16	3
W1″	–	8	T1282782	JISⅡ	125	45	20	15	18	3
