T1206 Series - I-GP Long Shank Spiral Point Tap for General Purpose YG1

T1206 Series – I-GP Long Shank Spiral Point Tap for General Purpose YG1

Item & Spec: General Taps
Type: General Taps
Thread form: M
Hole Type: Blind Hole
Material : HSS-E
Flute Type : Spiral Flute
Flute angle:
Surface Treatment: Steam Homo
Suitable for Material: Steel, Aluminium, Cast Iron, Stainless stell

Brand/Origin YG 1
Series General Taps
Application
Distributor PT. DAI STAR INDONESIA

► Suitable for tapping Blind holes in Carbon Steels and Alloy Steels, where chips are produced in a continuous coil state.

Spesifikasi T1206 Series – I-GP Long Shank Spiral Point Tap for General Purpose YG1

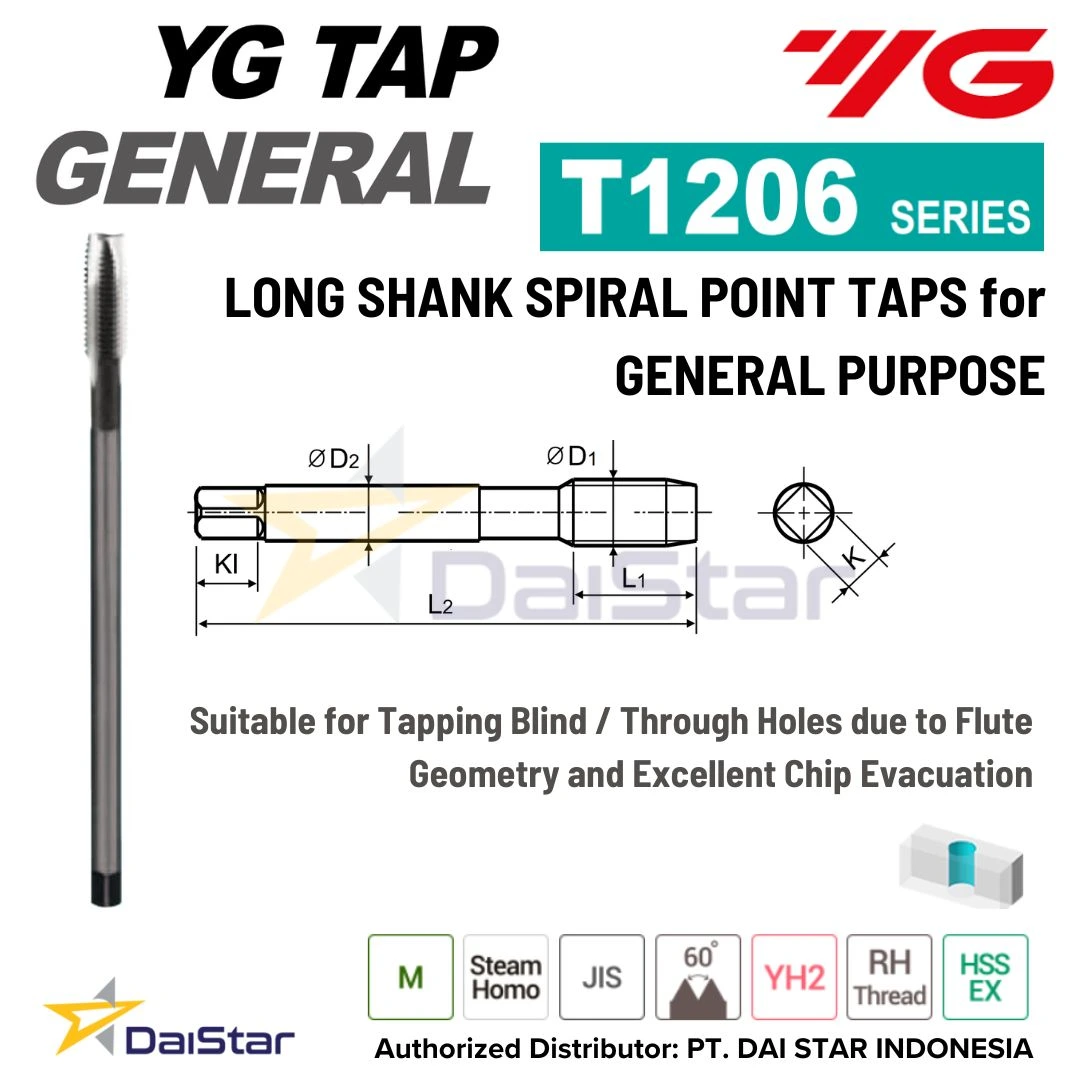

SIZE		Pitch	EDP No.	Limit	Overall Length	Thread Length	Shank Diameter	Square Size	Square Length	No. of Flute
ØD1		P	EDP No.	Limit	L2	L1	ØD2	K	Kl	No. of Flute
M8	×	1,25	T1206363	YH3	200	22	6,2	5	8	3
M10	×	1,5	T1206423	YH3	200	24	7	5,5	8	3
M10	×	1,25	T1206433	YH3	200	24	7	5,5	8	3
M12	×	1,75	T1206504	YH4	200	29	8,5	6,5	9	3
M12	×	1,5	T1206513	YH3	200	29	8,5	6,5	9	3
M12	×	1,25	T1206523	YH3	200	29	8,5	6,5	9	3
M14	×	2	T1206544	YH4	200	30	10,5	8	11	3
M14	×	1,5	T1206553	YH3	200	30	10,5	8	11	3
M16	×	2	T1206604	YH4	200	32	12,5	10	13	3
M16	×	1,5	T1206613	YH3	200	32	12,5	10	13	3
M18	×	2,5	T1206654	YH4	200	37	14	11	14	3
M18	×	1,5	T1206674	YH4	200	37	14	11	14	3
M20	×	2,5	T1206704	YH4	200	37	15	12	15	3
M20	×	1,5	T1206724	YH4	200	37	15	12	15	3
M22	×	2,5	T1206744	YH4	200	38	17	13	16	3
M22	×	1,5	T1206764	YH4	200	38	17	13	16	3
M24	×	3	T1206784	YH4	200	45	19	15	18	3
M24	×	1,5	T1206804	YH4	200	45	19	15	18	3
