T3751/T3741 Series - I-SP Spiral Flute Tap for Soft Structural Steels YG1

T3751/T3741 Series – I-SP Spiral Flute Tap for Soft Structural Steels YG1

Item & Spec: YG TAP Forming
Type: YG TAP Forming
Thread form: M
Hole Type: Blind/Through Hole
Material : HSS-E
Flute Type : with Oil Groove
Helix angle:
Surface Treatment: TiN
Suitable for Material: Steel, Stainless Steel, Aluminium

Brand/Origin YG 1
Series YG TAP Forming
Application
Distributor PT. DAI STAR INDONESIA

► Suitable for tapping in Steels, Non-Ferrous Metal Alloys and Stainless Steels. Capable of efficient, long life, high speed tapping.

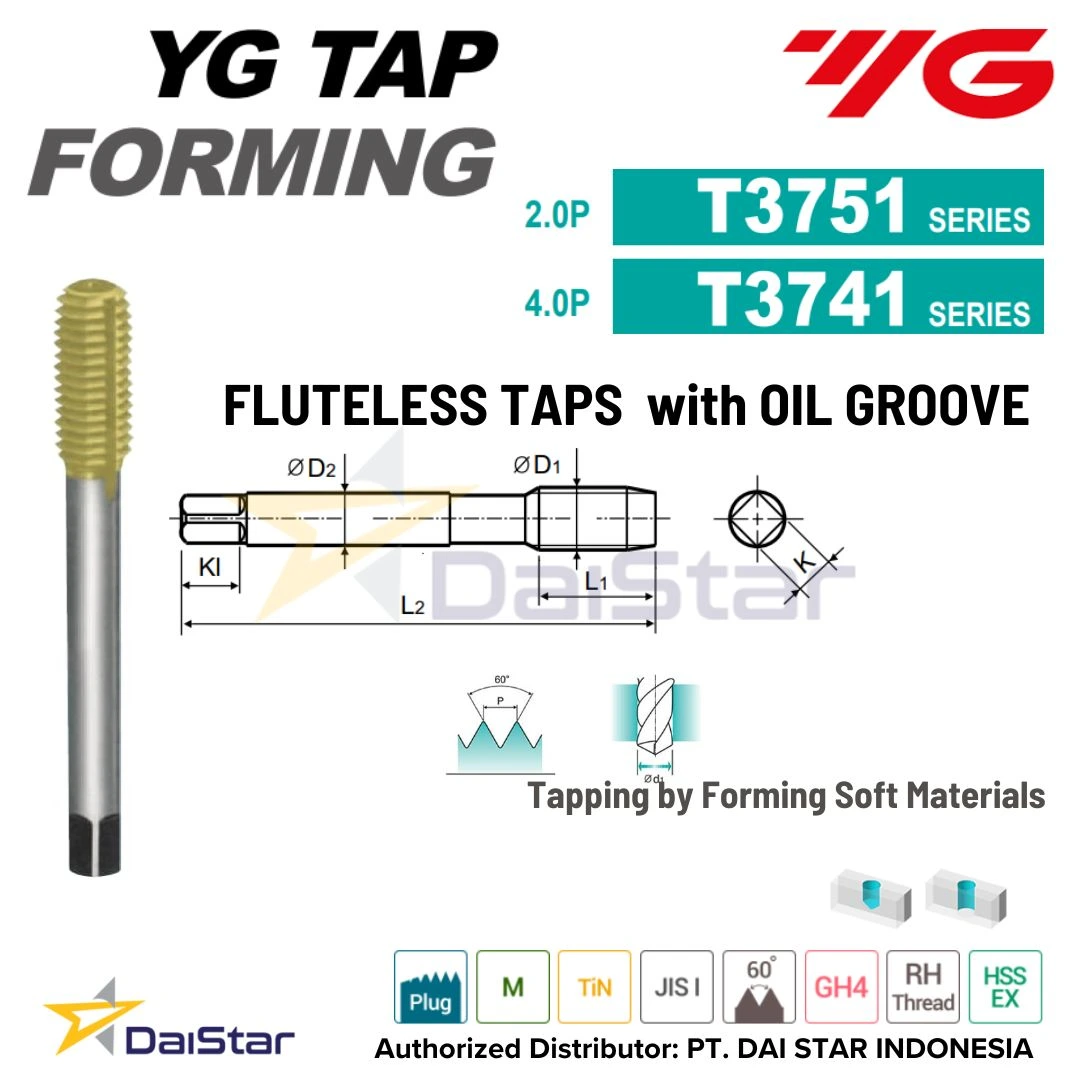

Spesifikasi T3751/T3741 Series – I-SP Spiral Flute Tap for Soft Structural Steels YG1

SIZE		Pitch	EDP No.		Limit	Overall Length	Thread Length	Shank Diameter	Square Size	Square Length
ØD1		P	2.0P	4.0P	Limit	L2	L1	ØD2	K	Kl
M2	×	0,4	T3751134	T3741134	GH4	40	9	3	2,5	5
M2.3	×	0,4	T3751194	T3741194	GH4	42	10	3	2,5	5
M2.5	×	0,45	T3751174	T3741174	GH4	44	11	3	2,5	5
M2.6	×	0,45	T3751494	T3741494	GH4	44	11	3	2,5	5
M3	×	0,5	T3751205	T3741205	GH5	46	9	4	3,2	6
M3.5	×	0,6	T3751225	T3741225	GH5	48	9	4	3,2	6
M4	×	0,7	T3751246	T3741246	GH6	52	10	5	4	7
M5	×	0,8	T3751286	T3741286	GH6	60	11	5,5	4,5	7
M6	×	1	T3751317	T3741317	GH7	62	12	6	4,5	7
M7	×	1	T3751347	T3741347	GH7	65	13	6,2	5	8
M8	×	1,25	T3751367	T3741367	GH7	70	22	6,2	5	8
M8	×	1	T3751377	T3741377	GH7	70	22	6,2	5	8
M10	×	1,5	T3751427	T3741427	GH7	75	24	7	5,5	8
M10	×	1,25	T3751437	T3741437	GH7	75	24	7	5,5	8
M10	×	1	T3751447	T3741447	GH7	75	24	7	5,5	8
M12	×	1,75	T3751508	T3741508	GH8	82	29	8,5	6,5	9
M12	×	1,5	T3751517	T3741517	GH7	82	29	8,5	6,5	9
M12	×	1,25	T3751527	T3741527	GH7	82	29	8,5	6,5	9
M12	×	1	T3751537	T3741537	GH7	82	29	8,5	6,5	9
M14	×	2	T3751540	T3741540	GH10	88	30	10,5	8	11
M14	×	1,5	T3751559	T3741559	GH9	88	30	10,5	8	11
M16	×	2	T3751600	T3741600	GH10	95	32	12,5	10	13
M16	×	1,5	T3751619	T3741619	GH9	95	32	12,5	10	13
M18	×	2,5	T375165A	T374165A	GH11	100	37	14	11	14
M18	×	1,5	T3751670	T3741670	GH10	100	37	14	11	14
M20	×	2,5	T375170A	T374170A	GH11	105	37	15	12	15
M20	×	1,5	T3751720	T3741720	GH10	105	37	15	12	15
