T1151 Series - I-SP Spiral Flute Taps for Soft Structural Steels YG1

T1151 Series – I-SP Spiral Flute Taps for Soft Structural Steels YG1

Item & Spec: YG Tap Steel
Type: YG Tap Steel
Thread form: M
Hole Type: Blind Hole
Material : HSS-E
Flute Type : Spiral Flute
Helix angle:
Surface Treatment: Steam Homo
Suitable for Material: Steel, Stainless Steel, Aluminium

Brand/Origin YG 1
Series YG Tap Steel
Application
Distributor PT. DAI STAR INDONESIA

► Suitable for tapping Blind holes in Soft Structural Steels such as SS41, S25C and other low carbon Steels.

Spesifikasi T1151 Series – I-SP Spiral Flute Taps for Soft Structural Steels YG1

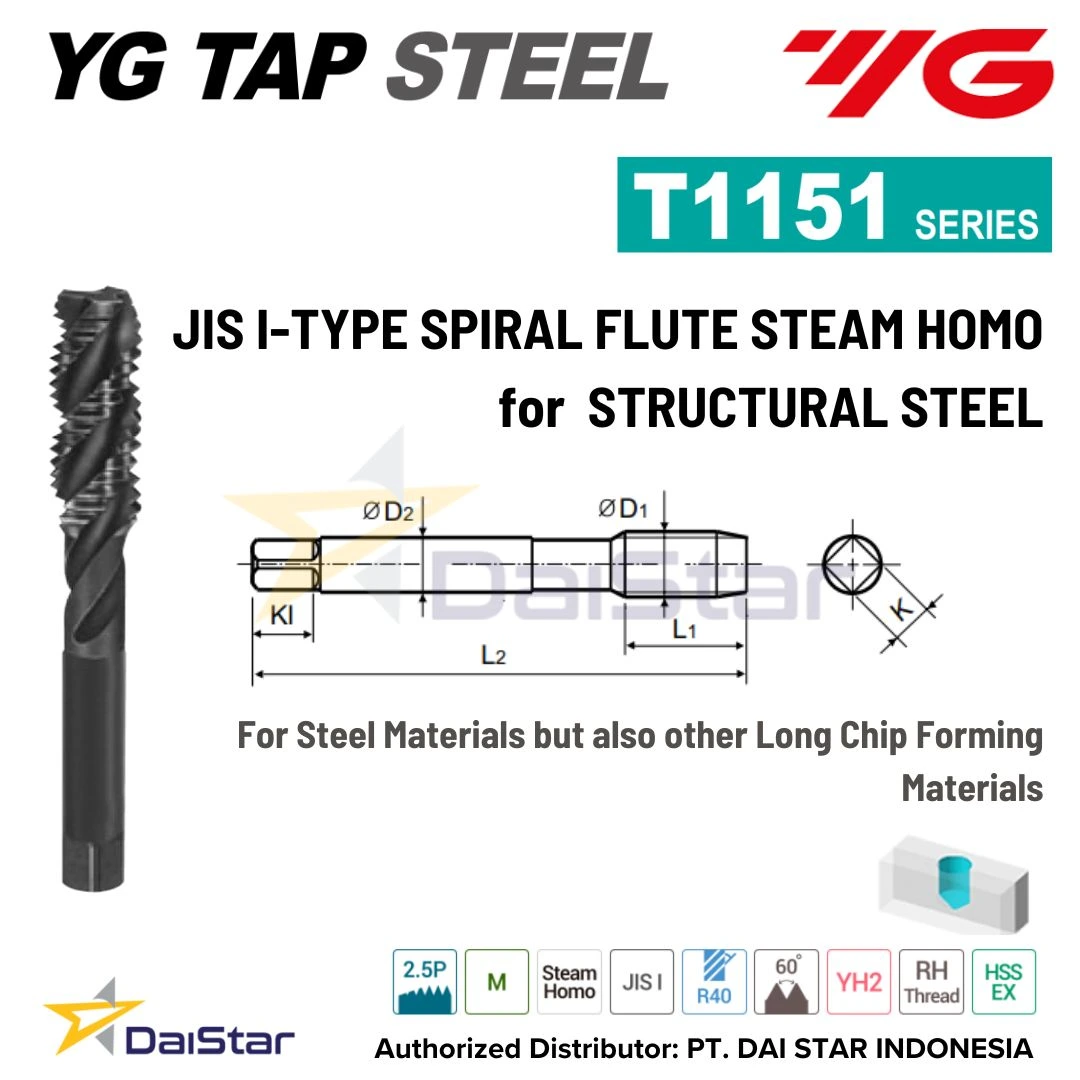

SIZE		Pitch	EDP No.	Limit	Overall Length	Thread Length	Shank Diameter	Square Size	Square Length	No. of Flute
ØD1		P	EDP No.	Limit	L2	L1	ØD2	K	Kl	No. of Flute
M3	×	0,5	T1151202	YH2	46	11	4	3,2	6	3
M3.5	×	0,6	T1151222	YH2	48	13	4	3,2	6	3
M4	×	0,7	T1151242	YH2	52	13	5	4	7	3
M5	×	0,8	T1151282	YH2	60	16	5,5	4,5	7	3
M6	×	1	T1151312	YH2	62	19	6	4,5	7	3
M8	×	1,25	T1151362	YH2	70	22	6,2	5	8	3
M10	×	1,5	T1151422	YH2	75	24	7	5,5	8	3
M10	×	1,25	T1151432	YH2	75	24	7	5,5	8	3
M12	×	1,75	T1151502	YH2	82	29	8,5	6,5	9	3
M12	×	1,5	T1151512	YH2	82	29	8,5	6,5	9	3
M12	×	1,25	T1151522	YH2	82	29	8,5	6,5	9	3
M14	×	2	T1151542	YH2	88	30	10,5	8	11	3
M14	×	1,5	T1151552	YH2	88	30	10,5	8	11	3
M16	×	2	T1151602	YH2	95	32	12,5	10	13	3
M16	×	1,5	T1151612	YH2	95	32	12,5	10	13	3
M18	×	2,5	T1151653	YH3	100	37	14	11	14	4
M18	×	1,5	T1151672	YH2	100	37	14	11	14	4
M20	×	2,5	T1151703	YH3	105	37	15	12	15	4
M20	×	1,5	T1151723	YH3	105	37	15	12	15	4
M22	×	2,5	T1151743	YH3	115	38	17	13	16	4
M22	×	1,5	T1151763	YH3	115	38	17	13	16	4
M24	×	3	T1151783	YH3	120	45	19	15	18	4
M24	×	1,5	T1151803	YH3	120	45	19	15	18	4

Kami adalah Distributor Resmi produk YG1 T1151 Series – I-SP Spiral Flute Taps for Soft Structural Steels. Produk YG-1 adalah salah satu Brand yang sudah dikenal di seluruh dunia serta sudah banyak digunakan oleh berbagai industri manufaktur dengan beragam jenis dan kegunaan yang bermacam-macam.
