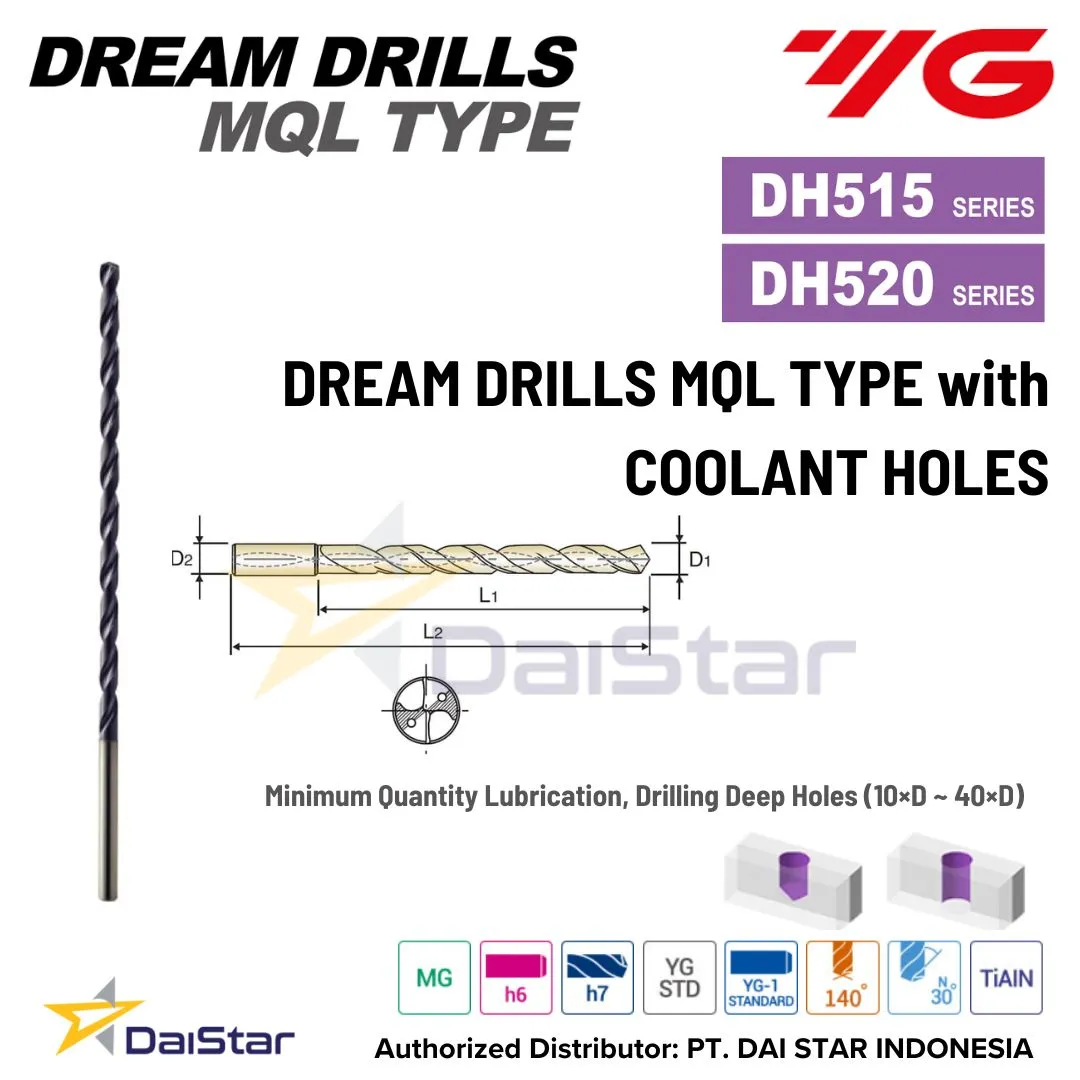

Item & Spec : Solid Carbide Dream Drill MQL Type
Type Length : 20XD Extra Long
Type : With Internal Coolant Holes
Cutting Angle : 140°
Available Size : D 3.0 – D 12.0 mm
Surface Treatment TiAIN
Suitable for Material Steel & Cast Iron
Brand/Origin YG1 Korea
Series Dream Drills MQL
Application –
Distributor PT. DAI STAR INDONESIA
▶ 4-Facet Point for good centering capability
▶ Optimized special flutes are ideal for removing chips and for productive drilling
▶ Enhanced chip evacuation by polished flute upgraded TiAlN nano layer full coating
▶ MQL system compatible (Minimum Quantity Lubrication)
| EDP No. | Drill Diameter | Shank Diameter | Flute Length | Overall Length |
| TiAlN | D1 | D2 | L1 | L2 |
| DH520030 | 3.0 | 3 | 69 | 120 |
| DH520035 | 3.5 | 4 | 81 | 132 |
| DH520040 | 4.0 | 4 | 92 | 143 |
| DH520045 | 4.5 | 5 | 104 | 157 |
| DH520050 | 5.0 | 5 | 115 | 168 |
| DH520055 | 5.5 | 6 | 127 | 182 |
| DH520060 | 6.0 | 6 | 138 | 193 |
| DH520070 | 7.0 | 7 | 161 | 217 |
| DH520080 | 8.0 | 8 | 184 | 241 |
| DH520090 | 9.0 | 9 | 207 | 265 |
| DH520100 | 10.0 | 10 | 230 | 288 |
| DH520120 | 12.0 | 12 | 276 | 341 |
